LED Drivers

AAT3156ISN-T1 from Skyworks Solutions Inc. is a IC LED DRIVER RGLTR DIM 16QFN

AAT3122ITP-T1 from Skyworks Solutions Inc. is a IC LED DRIVER RGLTR DIM 12TSOPJW

TCA62724FMG,EL from Toshiba Semiconductor and Storage is a IC LED DRVR LIN DIM 150MA 10SON

LP3936SLX from Texas Instruments is a IC LED DRV RGLTR PWM 32TLGA

LM3532TME-40/NOPB from Texas Instruments is a IC LED DRV RGLTR PWM 16DSBGA

LM3532TMX-40/NOPB from Texas Instruments is a IC LED DRV RGLTR PWM 16DSBGA

LM27965SQ-MX/NOPB from Texas Instruments is a IC LED DRV RGLTR I2C 30MA 24WQFN

LM27964SQ-A from Texas Instruments is a IC LED DRV RGLTR I2C 24WQFN

LM3535TME-2ALS/NOPB from Texas Instruments is a Integrated Circuit LED DRV RGLTR PWM 20DSBGA

LM2795TLX/NOPB from Texas Instruments is a IC LED DRV RGLTR PWM 14DSBGA

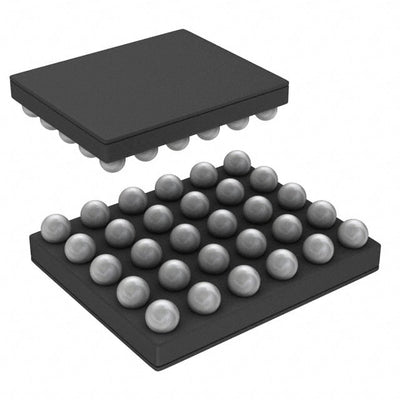

LP5527TL/NOPB from Texas Instruments is a IC LED DRIVER RGLTR 1.7A 30DSBGA

LM3551SD from Texas Instruments is a IC LED DRIVER RGLTR 1A 14WSON

LM3492QMH/NOPB from Texas Instruments is a Integrated Circuit Automotive 2-channel individual dimmable LED driver with boost converter and fast current regulator - Automotive LED drivers. The LM3492/-Q1 integrates a boost converter and a two-channel current regulator to implement a high efficient and cost effective LED driver for driving two individually dimmable LED strings with a maximum power of 15 W and an output voltage of up to 65 V. The boost converter employs a proprietary Projected-On-Time control method to give a fast transient response with no compensation required, and a nearly constant switching frequency programmable from 200 kHz to 1 MHz. The application circuit is stable with ceramic capacitors and produces no audible noise on dimming. The programmable peak current limit and soft-start features reduce current surges at start-up, and an integrated 190 mΩ, 3.9-A N-Channel MOSFET switch minimizes the solution size. The fast slew rate current regulator allows high frequency and narrow pulse width dimming signals to achieve a very high contrast ratio of 1000:1 at a dimming frequency of more than 3 kHz. The LED current is programmable from 50 mA to 200 mA by a single resistor. To maximize the efficiency, Dynamic Headroom Control (DHC) automatically adjusts the output voltage to a minimum. DHC also facilitates a single BOM for different number of LED in a string, which is required for backlight panels of different size, thereby reducing overall development time and cost. The LM3492/-Q1 comes with a versatile COMM pin which serves as a bidirectional I/O pin interfacing with an external MCU for the following functions: power-good, overtemperature, IOUT overvoltage and undervoltage indications, switching frequency tuning, and channel 1 disabling. Other supervisory functions of the LM3492/-Q1 include precise enable, VCC undervoltage lockout, current regulator over-power protection, and thermal shutdown protection. The LM3492/-Q1 is available in the thermally enhanced 20-pin HTSSOP package.

LM2792LDX-L/NOPB from Texas Instruments is a Integrated Circuit LED DRV RGLTR PWM 34MA 10WSON

LM2754SQX/NOPB from Texas Instruments is a IC LED DRIVER RGLTR 200MA 24WQFN

LM27953TL/NOPB from Texas Instruments is a IC LED DRV RGLTR PWM 18DSBGA

LM3430SDX from Texas Instruments is a IC LED DRIVER CTRLR PWM 12WSON

STP04CM05MTR from STMicroelectronics is a IC LED DRIVER LINEAR 400MA 14SO

AAT1407IMK-T1 from Skyworks Solutions Inc. is a IC LED DRV RGLTR PWM 30MA 24TQFN

BD7710GWL-E2 from Rohm Semiconductor is a IC LED DVR 1.5A I2C UCSP50L2

RACD20-500 from Recom Power is a LED DRIVER CC AC/DC 6-40V 500MA

RACD100-36-PSE from Recom Power is a LED DVR CC/CV AC/DC 26-36V 2.8A

RACD35-700A from Recom Power is a LED DRIVER CC AC/DC 36-48V 700MA

RACD03-500-PSE from Recom Power is a LED DRVR CC AC/DC 3-9.5V 500MA

RACD30-500 from Recom Power is a LED DRIVER CC AC/DC 10-56V 500MA

RACD60-2100/IP67 from Recom Power is a LED DRIVER CC AC/DC 21-28V 2.14A

RACD150-48 from Recom Power is a LED DVR CC/CV AC/DC 34-48V 3.2A

RACD25-1050A from Recom Power is a LED DRIVER CC AC/DC 12-24V 1.05A

PDA012A-350C-R from Phihong USA is a LED DRIVER CC AC/DC 20-34.4V

NCL30388B1DR2G from onsemi is a IC LED DRVR CTRL DIM 4.7MA 7SOIC

CAT3648HV3-GT2 from onsemi is a IC LED DRV RGLT MULT-STEP 16TQFN

FAN5616MPX from onsemi is a IC LED DRVR RGLTR PWM 40MA 16MLP

FAN5645MPX from onsemi is a IC LED DRVR LIN SGL WR 20MA 6MLP

NCL30083ADMR2G from onsemi is a IC LED DRV OFFL MULTI-STEP 8MSOP

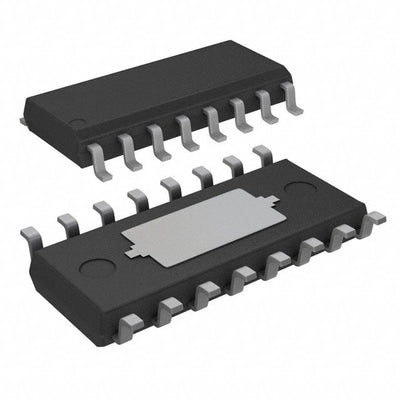

FL77944MX from onsemi is a IC LED DRIVER OFFL PWM 16SOIC

NLSF595DTR2 from onsemi is a IC LED DRVR LINEAR 12MA 16TSSOP
