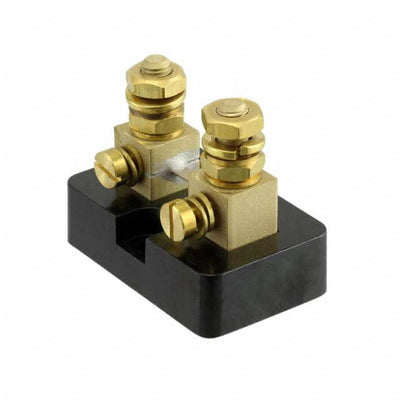

RSA-20-50

RSA-20-50 from Riedon is a precision 2.5 mOhms ±0.25% 1W metal element chassis mount resistor designed for current sensing and pulse withstanding applications.

Specifications:
• Resistance: 2.5 mOhms
• Tolerance: ±0.25%
• Power Rating: 1W
• Composition: Metal Element
• Temperature Coefficient: ±15ppm/°C
• Operating Range: -40°C to +60°C
• Mounting: Flanges with M4 threaded leads
• Dimensions: 2.000" L × 1.252" W (50.80mm × 31.80mm)
• Height (seated): 1.700" (43.18mm)
• Package: Rectangular case

Ideal for low-resistance current measurement circuits and applications requiring high precision and stability across temperature ranges. RoHS3 compliant, REACH affected, EAR99 classified.

Series: RS
Base Number: RSA
Package: Bulk
Standard Package: 1
RoHS: ROHS3 Compliant
REACH: Affected
MSL: Not Applicable
ECCN: EAR99
HTSUS: 8533.21.0090

Resistors / Chassis Mount Resistors
