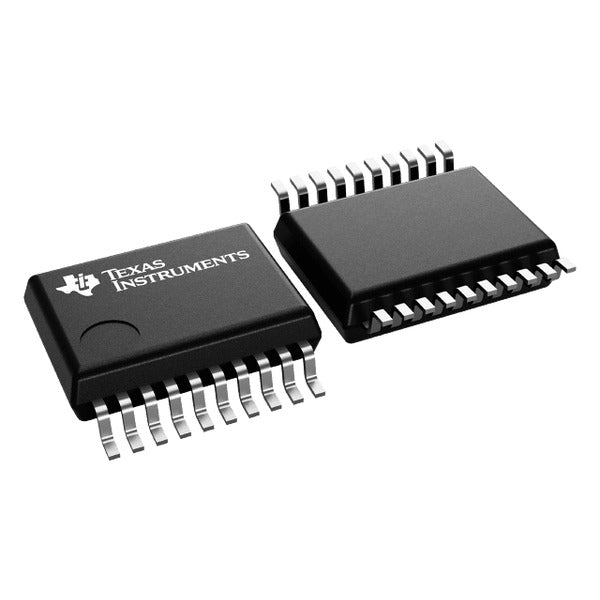

SN74ABT244AMDBREP

SN74ABT244AMDBREP from Texas Instruments is a Integrated Circuit Enhanced product 8-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs - Noninverting buffers & drivers. This octal buffer and line driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. Together with the SN54ABT240, SN74ABT240A, SN54ABT241, and SN74ABT241A, these devices provide the choice of selected combinations of inverting and noninverting outputs, symmetrical active-low output-enable (OE) inputs, and complementary OE and OE inputs. The SN74ABT244A is organized as two 4-bit buffers/line drivers with separate OE inputs. When OE is low, the device passes noninverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. The SN74ABT244 is characterized for operation over the full military temperature range of -55°C to 125°C.

Series: 74ABT
Base Number: 74ABT244
Package: Tape & Reel or Cut Tape
Standard Package: 2,000
RoHS: ROHS3 Compliant
REACH: Unaffected
MSL: Unlimited
ECCN: EAR99
HTSUS: 8542.39.0001

Integrated Circuits (ICs) / Logic / Buffers - Drivers - Receivers - Transceivers
