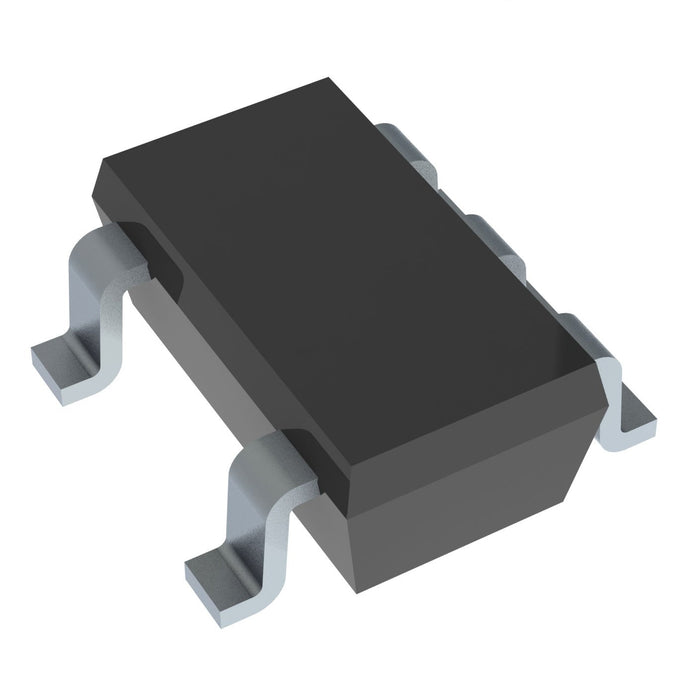

TPS3820-50DBVRG4

TPS3820-50DBVRG4 from Texas Instruments is a Integrated Circuit Active-low, push-pull, voltage supervisor (reset IC) with 0.2-s watchdog & manual reset - Reset & watchdog ICs. The TPS382x family of supervisors provide circuit initialization and timing supervision, primarily for DSP and processor-based systems. During power on, RESET asserts when the supply voltage VDD becomes greater than 1.1V. Thereafter, the supply voltage supervisor monitors VDD and keeps RESET active low as long as VDD remains less than the threshold voltage, VIT-. An internal timer delays the return of the output to the inactive state (high) to make sure proper system reset. The delay time, td, starts after VDD has risen above the threshold voltage (VIT- + VHYS). When the supply voltage drops below the threshold voltage VIT-, the output becomes active (low) again. No external components are required. All the devices of this family have a fixed-sense threshold voltage, VIT-, set by an internal voltage divider. The TPS382x family also offers watchdog time out options of 200ms (TPS3820) and 1.6s (TPS3823, TPS3824, and TPS3828).

Base Number: TPS3820
Package: Tape & Reel
Standard Package: 3,000
RoHS: ROHS3 Compliant
REACH: Unaffected
MSL: Unlimited
ECCN: EAR99
HTSUS: 8542.39.0001

Integrated Circuits (ICs) / Power Management (PMIC) / Supervisors
