Search results for “74ABTH245”

The SN74ABTH245N from Texas Instruments is a non-inverting transceiver rated to 5.5V, with 1 element, 8 bits per element and 3-state output, in a 20-PDIP package.

The SN74ABTH245DGVRG4 from Texas Instruments is a non-inverting transceiver Integrated Circuit with a 5.5 V rating in a 20-TVSOP package.

The SN74ABTH245DGVR from Texas Instruments is a non-inverting transceiver Integrated Circuit rated 5.5 V, in a 20-TVSOP package.

The SN74ABTH245DGVRE4 from Texas Instruments is a non-inverting transceiver Integrated Circuit rated 5.5 V, with 1 element, 8 bits per element and 3-state outputs, in a 20-TVSOP package.

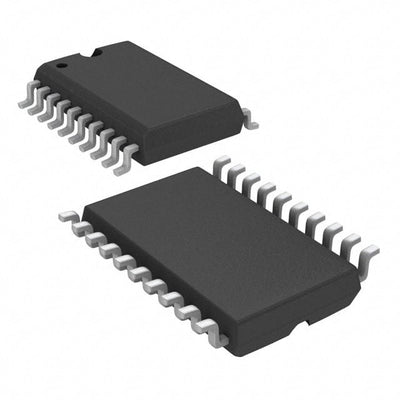

The SN74ABTH245DW from Texas Instruments is a non-inverting transceiver Integrated Circuit rated at 5.5 V with 1 element, 8 bits per element and 3-state outputs in a 20-SOIC package.

The SN74ABTH245DWR from Texas Instruments is a non-inverting transceiver Integrated Circuit with 1 element of 8 bits per element and 3-state outputs, rated to 5.5 V, in a 20-SOIC package.

SN74ABTH245PWR from Texas Instruments is a Integrated Circuit Octal Bus Transceivers With 3-State Outputs - General-purpose transceivers. These octal bus transceivers are designed for asynchronous communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated. When V CC is between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. This device is fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN54ABTH245 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABTH245 is characterized for operation from -40°C to 85°C.

SN74ABTH245DBR from Texas Instruments is a Integrated Circuit Octal Bus Transceivers With 3-State Outputs - General-purpose transceivers. These octal bus transceivers are designed for asynchronous communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated. When V CC is between 0 and 2.1 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 2.1 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. This device is fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN54ABTH245 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABTH245 is characterized for operation from -40°C to 85°C.
