Search results for “74ACT11373”

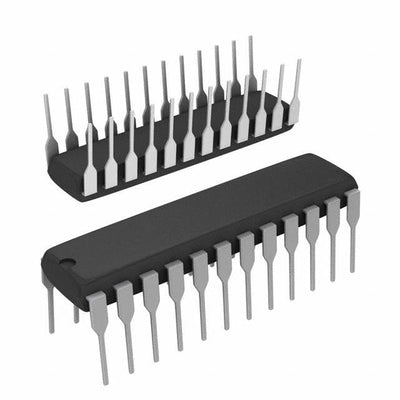

The 74ACT11373NTG4 from Texas Instruments is a D-type transparent latch Integrated Circuit with 1 channel of 8:8 and tri-state output, in a 24-PDIP package.

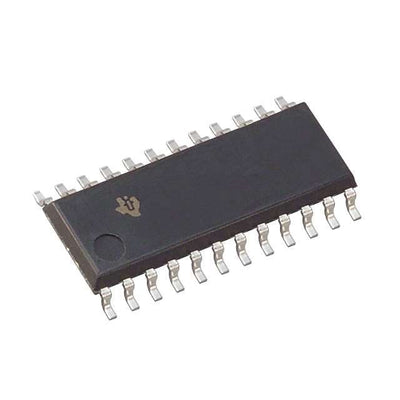

The 74ACT11373NSRE4 from Texas Instruments is a D-type transparent latch with 1 channel, an 8:8 configuration and tri-state output, in a 24-SO package.

The 74ACT11373NSRG4 from Texas Instruments is a D-type transparent latch with 1 channel, 8:8 bits, and tri-state output, in a 24-SO package.

The 74ACT11373DBLE from Texas Instruments is an 8-bit bus driver Integrated Circuit in the ACT series.

74ACT11373NS from Texas Instruments is a IC OCTAL TRANSP D-TYPE 24SO

The 74ACT11373NSR from Texas Instruments is an octal transparent D-type latch Integrated Circuit with 1 channel in an 8:8 configuration, tri-state outputs, in a 24-SO package.

74ACT11373DWR from Texas Instruments is a IC OCT TRANSP D LATCH 3ST 24SOIC

The 74ACT11373NT from Texas Instruments is an octal transparent D-type latch Integrated Circuit in a 24-DIP package.

74ACT11373DBR from Texas Instruments is a Integrated Circuit Octal Transparent D-Type Latches With 3-State Outputs - D-type latches. This 8-bit latch features 3-state outputs designed specifically for driving highly-capacitive or relatively low-impedance loads. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The eight latches of the 74ACT11373 are transparent D-type latches. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When the enable is taken low, the Q outputs are latched at the levels that were set up at the D inputs. A buffered output-enable input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impendance third state and increased drive provide the capability to drive the bus lines in a bus-organized system without need for interface or pullup components. does not affect the internal operations of the latches. Old data can be retained or new data can be entered while the outputs are off. The 74ACT11373 is characterized for operation from -40°C to 85°C.

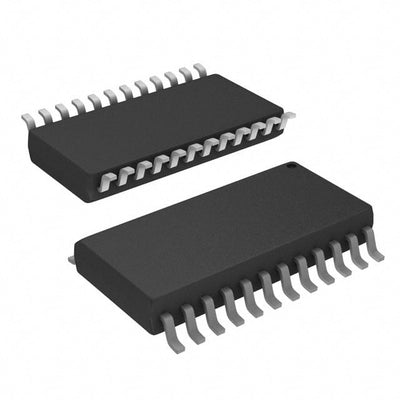

The 74ACT11373DW from Texas Instruments is a D-type transparent latch with 1 channel, an 8:8 configuration and tri-state outputs, in a 24-SOIC package.
