Search results for “74ACT1284”

The 74ACT1284MSA from Fairchild Semiconductor is an IEEE 1284 translation transceiver Integrated Circuit in a 20-SSOP package.

The 74ACT1284MTR from STMicroelectronics is an IEEE 1284 translation transceiver Integrated Circuit in a 20-SO package.

SN74ACT1284PWR from Texas Instruments is a Integrated Circuit 7-Bit Bus Interfaces With 3-State Outputs - Voltage translators. The ’ACT1284 devices are designed for asynchronous two-way communication between data buses. The control function minimizes external timing requirements. The devices allow data transmission in either the A-to-B or the B-to-A direction for bits 1, 2, 3, and 4, depending on the logic level at the direction-control (DIR) input. Bits 5, 6, and 7, however, always transmit in the A-to-B direction. The output drive for each mode is determined by the high-drive (HD) control pin. When HD is high, the high drive is delivered by the totem-pole configuration, and when HD is low, the outputs are open drain. This meets the drive requirements as specified in the IEEE 1284-I (level-1 type) and the IEEE 1284-II (level-2 type) parallel peripheral-interface specification.

The 74ACT1284MSAX from Fairchild Semiconductor is an IEEE 1284 translation transceiver Integrated Circuit in a 20-SSOP package.

The 74ACT1284MTCX from onsemi is a TTL-compatible translation transceiver Integrated Circuit for IEEE 1284, in a 20-TSSOP package.

The 74ACT1284SC from Fairchild Semiconductor is a translation transceiver Integrated Circuit conforming to IEEE STD 1284, in a 20-SOIC package.

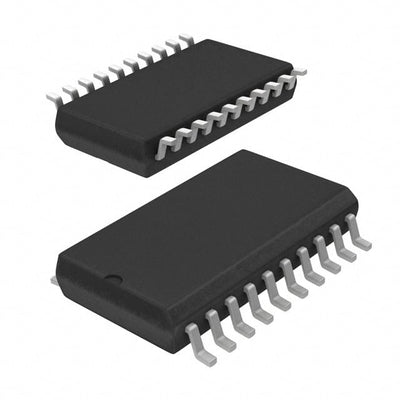

The 74ACT1284SC from onsemi is an IEEE TTL-compatible transceiver Integrated Circuit in a 20-SOIC package.

The 74ACT1284SCX from onsemi is a TTL-compatible IEEE STD 1284 translation transceiver Integrated Circuit in a 20-SOIC package.

The 74ACT1284MTCX from Fairchild Semiconductor is a line transceiver integrated circuit.

SN74ACT1284DBR from Texas Instruments is a Integrated Circuit 7-Bit Bus Interfaces With 3-State Outputs - Voltage translators. The ’ACT1284 devices are designed for asynchronous two-way communication between data buses. The control function minimizes external timing requirements. The devices allow data transmission in either the A-to-B or the B-to-A direction for bits 1, 2, 3, and 4, depending on the logic level at the direction-control (DIR) input. Bits 5, 6, and 7, however, always transmit in the A-to-B direction. The output drive for each mode is determined by the high-drive (HD) control pin. When HD is high, the high drive is delivered by the totem-pole configuration, and when HD is low, the outputs are open drain. This meets the drive requirements as specified in the IEEE 1284-I (level-1 type) and the IEEE 1284-II (level-2 type) parallel peripheral-interface specification.

The SN74ACT1284NSR from Texas Instruments is an IEEE 1284 translation transceiver Integrated Circuit with a 7-bit bus interface and 3-state outputs, in a 20-SO package.

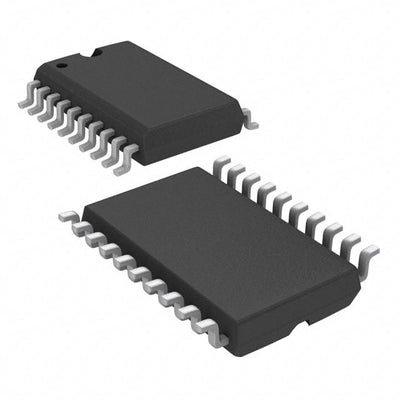

The SN74ACT1284DW from Texas Instruments is a 7-bit bus interface Integrated Circuit in a 20-SOIC package.

The SN74ACT1284DWR from Texas Instruments is a 7-bit bus interface Integrated Circuit with 3-state outputs, in a 20-SOIC package.
