Search results for “74CB3Q3245”

The 74CB3Q3245RGYRG4 from Texas Instruments is a bus switch Integrated Circuit with 8 switches in a 1:1 configuration, in a 20-VQFN (3.5x4.5) package.

SN74CB3Q3245PWR from Texas Instruments is a Integrated Circuit 3.3-V, 1:1 (SPST), 8-channel FET bus switch - Protocol & bus switches & muxes. The SN74CB3Q3245 device is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q3245 device provides an optimized interface device designed for broadband communications, networking, and data-intensive computing systems. The SN74CB3Q3245 device is organized as an 8-bit bus switch with a single output-enable (OE) input. When OE is low, the bus switch is ON and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE is high, the bus switch is OFF and a high-impedance state exists between the A and B ports. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry prevents damaging current backflow through the device when the device is powered down. The device has isolation during power off. To verify the high-impedance state during power up or power down, OE must be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

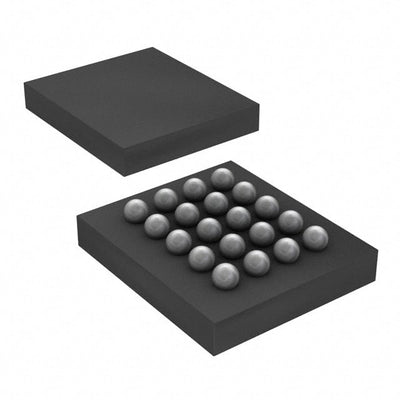

The SN74CB3Q3245ZQNR from Texas Instruments is a bus switch Integrated Circuit with 8 x 1:1 channels in a 20-BGA package.

The SN74CB3Q3245GQNR from Texas Instruments is an 8 x 1:1 bus switch Integrated Circuit in a 20-BGA MicroStar Junior (4x3) package.

SN74CB3Q3245PW from Texas Instruments is a Integrated Circuit 3.3-V, 1:1 (SPST), 8-channel FET bus switch - Protocol & bus switches & muxes. The SN74CB3Q3245 device is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q3245 device provides an optimized interface device designed for broadband communications, networking, and data-intensive computing systems. The SN74CB3Q3245 device is organized as an 8-bit bus switch with a single output-enable (OE) input. When OE is low, the bus switch is ON and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE is high, the bus switch is OFF and a high-impedance state exists between the A and B ports. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry prevents damaging current backflow through the device when the device is powered down. The device has isolation during power off. To verify the high-impedance state during power up or power down, OE must be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

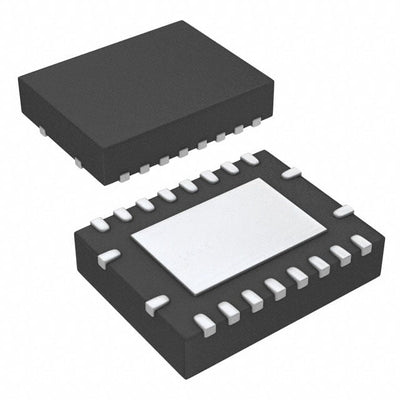

The SN74CB3Q3245RGYR from Texas Instruments is an 8 x 1:1 bus switch Integrated Circuit in a 20-VQFN (3.5x4.5) package.

The SN74CB3Q3245DBQR from Texas Instruments is a bus switch with 8 x 1:1 channels, in a 20-SSOP package.

The SN74CB3Q3245DGVR from Texas Instruments is an 8 x 1:1 bus switch Integrated Circuit in a 20-TVSOP package.
