Search results for “74CBT16210”

The 74CBT16210DGGRE4 from Texas Instruments is a bus switch Integrated Circuit configured as 10 x 1:1 in a 48-TSSOP package.

SN74CBT16210DL from Texas Instruments is a Integrated Circuit 5-V, 1:1 (SPST), 10-channel general-purpose FET bus switch configurable with 1 or 2 control inputs - Protocol & bus switches & muxes. The SN74CBT16210 provides 20 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The device is organized as a dual 10-bit bus switch with separate output-enable (OE) inputs. It can be used as two 10-bit bus switches or as one 20-bit bus switch. When OE is low, the associated 10-bit bus switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the ports.

SN74CBT16210DLR from Texas Instruments is a Integrated Circuit 5-V, 1:1 (SPST), 10-channel general-purpose FET bus switch configurable with 1 or 2 control inputs - Protocol & bus switches & muxes. The SN74CBT16210 provides 20 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The device is organized as a dual 10-bit bus switch with separate output-enable (OE) inputs. It can be used as two 10-bit bus switches or as one 20-bit bus switch. When OE is low, the associated 10-bit bus switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the ports.

The SN74CBT16210CDGGR from Texas Instruments is a bus switch Integrated Circuit with 10 x 1:1 switches, in a 48-TSSOP package.

SN74CBT16210CDLR from Texas Instruments is a Integrated Circuit 5-V, 1:1 (SPST), 20-channel FET bus switch with -2-V undershoot protection & 2 control inputs - Protocol & bus switches & muxes. The SN74CBT16210C is a high-speed TTL-compatible FET bus switch with low ON-state resistance (r on), allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT16210C provides protection for undershoot up to -2 V by sensing an undershoot event and ensuring that the switch remains in the proper OFF state. The SN74CBT16210C is organized as two 10-bit bus switches with separate output-enable (1OE, 2OE) inputs. It can be used as two 10-bit bus switches or as one 20-bit bus switch. When OE is low, the associated 10-bit bus switch is ON, and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE is high, the associated 10-bit bus switch is OFF, and the high-impedance state exists between the A and B ports. This device is fully specified for partial-power-down applications using I off. The I off feature ensures that damaging current will not backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

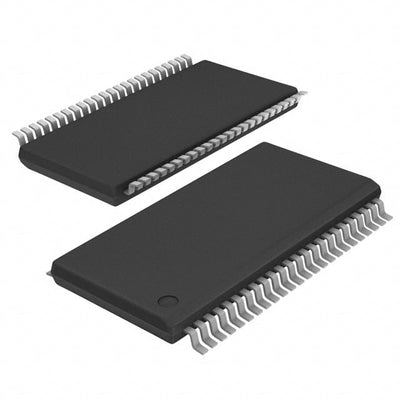

The SN74CBT16210CDGVR from Texas Instruments is a bus switch with a 10 x 1:1 configuration in a 48-TVSOP package.

The SN74CBT16210DGVR from Texas Instruments is a bus switch Integrated Circuit with 10 x 1:1 channels in a 48-TVSOP package.

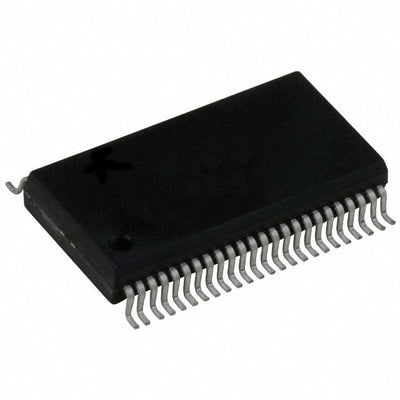

The SN74CBT16210DGGR from Texas Instruments is a bus switch with a 10 x 1:1 configuration, in a 48-TSSOP package.
