The 74LVTH162245GRDR from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements, 8 bits per element, 3-state output, 3.6 V, in a 54-BGA Microstar Junior (8x5.5) package.

The 74LVTH162245DGGRG4 from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements, 8 bits per element and 3-state outputs, with a 3.6 V rating, in a 48-TSSOP package.

The 74LVTH162245ZQLR from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements, 8 bits per element and 3-state output, rated 3.6 V, in a 56-BGA Microstar Junior (7x4.5) package.

74LVTH162245GRE4 from Texas Instruments is a 3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The 'LVTH162245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess I CC and I CCZ. Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. The A-port outputs, which are designed to source or sink up to 12 mA, include equivalent 22- series resistors to reduce overshoot and undershoot. When V CC is between 0 and 1.5 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. These devices are fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

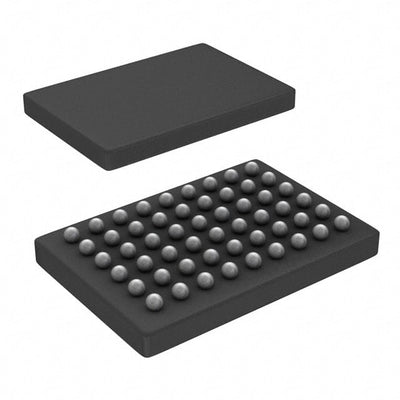

The 74LVTH162245ZRDR from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements of 8 bits each and 3-state outputs, rated at 3.6 V, in a 54-BGA Microstar Junior (8x5.5) package.

The 74LVTH162245GX from Fairchild Semiconductor is a non-inverting transceiver with 2 elements of 8 bits each and 3-state outputs, rated 3.6 V, in a 54-FBGA (8x5.5) package.

The 74LVTH162245MEA from Fairchild Semiconductor is a non-inverting transceiver with 2 elements of 8 bits each and 3-state outputs, rated 3.6 V, in a 48-SSOP package.

The 74LVTH162245GX from onsemi is a non-inverting transceiver Integrated Circuit with 2 elements, 8 bits per element, 3-state outputs, rated 3.6 V, in a 54-FBGA (5.5x8) package.

The 74LVTH162245G from onsemi is a non-inverting transceiver Integrated Circuit with 2 elements, 8 bits per element and 3-state output, in a 54-FBGA (5.5x8) package rated at 3.6 V.

The 74LVTH162245G from Fairchild Semiconductor is a non-inverting transceiver with 2 elements of 8 bits each and 3-state outputs, rated 3.6 V, in a 54-FBGA (8x5.5) package.

SN74LVTH162245DLR from Texas Instruments is a Integrated Circuit 3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The 'LVTH162245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess I CC and I CCZ. Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. The A-port outputs, which are designed to source or sink up to 12 mA, include equivalent 22- series resistors to reduce overshoot and undershoot. When V CC is between 0 and 1.5 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. These devices are fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

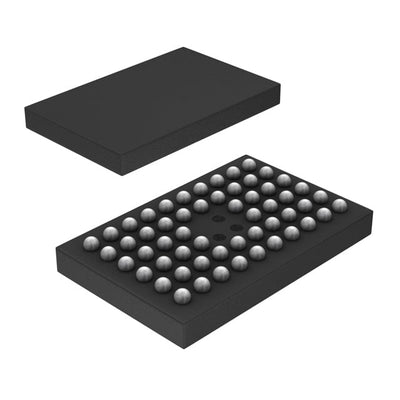

The SN74LVTH162245KR from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements, 8 bits per element and 3-state outputs, in a 56-BGA Microstar Junior (7x4.5) package.

SN74LVTH162245DLG4 from Texas Instruments is a Integrated Circuit 3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The 'LVTH162245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess I CC and I CCZ. Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. The A-port outputs, which are designed to source or sink up to 12 mA, include equivalent 22- series resistors to reduce overshoot and undershoot. When V CC is between 0 and 1.5 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. These devices are fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

SN74LVTH162245DL from Texas Instruments is a Integrated Circuit 3.3-V ABT 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The 'LVTH162245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess I CC and I CCZ. Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. The A-port outputs, which are designed to source or sink up to 12 mA, include equivalent 22- series resistors to reduce overshoot and undershoot. When V CC is between 0 and 1.5 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. These devices are fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

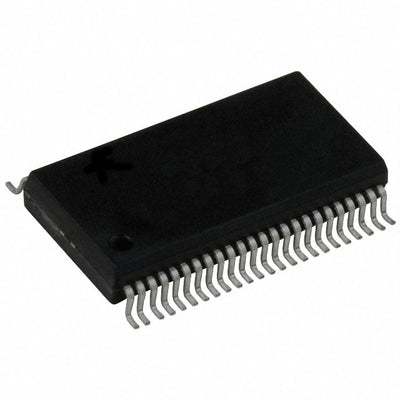

The SN74LVTH162245DGGR from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements of 8 bits and 3-state output, rated 3.6 V, in a 48-TSSOP package.
