Search results for “74alvth”

Products

74ALVTH16245VRG4

Texas Instruments
Low stock

The 74ALVTH16245VRG4 from Texas Instruments is a non-inverting transceiver Integrated Circuit rated 3.6 V, with 2 elements, 8 bits per element and 3-state output, in a 48-TVSOP package.

View full details

74ALVTH16373ZQLR

Texas Instruments
Low stock

The 74ALVTH16373ZQLR from Texas Instruments is a D-type latch Integrated Circuit with 3-ST outputs in a 56-BGA package.

View full details

74ALVTH16244VRE4

Texas Instruments
Low stock

The 74ALVTH16244VRE4 from Texas Instruments is a non-inverting buffer Integrated Circuit rated 3.6 V in a 48-TVSOP package.

View full details

74ALVTH16374ZQLR

Texas Instruments
Low stock

The 74ALVTH16374ZQLR from Texas Instruments is a dual 8-bit D-type flip-flop Integrated Circuit in a 56-BGA package.

View full details

74ALVTH32244ZKER

Texas Instruments
Low stock

The 74ALVTH32244ZKER from Texas Instruments is a non-inverting buffer Integrated Circuit with 8 elements of 4 bits each and 3-state outputs, rated at 3.6 V, in a 96-PBGA MICROSTAR (13.6x5.6) package.

View full details

74ALVTH16245ZQLR

Texas Instruments
Low stock

The 74ALVTH16245ZQLR from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements, 8 bits per element and 3-state output, rated 3.6 V, in a 56-BGA Microstar Junior (7x4.5) package.

View full details

74ALVTH16240DLG4

Texas Instruments
Low stock

The 74ALVTH16240DLG4 from Texas Instruments is an inverting buffer rated at 3.6 V, with 4 elements of 4 bits each, 3-state outputs, in a 48-SSOP package.

View full details

74ALVTH16244DLRG4

Texas Instruments
Low stock

The 74ALVTH16244DLRG4 from Texas Instruments is a non-inverting buffer Integrated Circuit with 4 elements of 4 bits each and 3-state outputs, rated at 3.6 V, in a 48-SSOP package.

View full details

74ALVTH16245GRE4

Texas Instruments
Low stock

The 74ALVTH16245GRE4 from Texas Instruments is a non-inverting transceiver Integrated Circuit rated at 3.6 V in a 48-TSSOP package.

View full details

74ALVTH162827LRG4

Texas Instruments
Low stock

The 74ALVTH162827LRG4 from Texas Instruments is a non-inverting buffer with 2 elements, 10 bits per element and 3-state outputs, rated 3.6 V, in a 56-SSOP package.

View full details

74ALVTH16373VRG4

Texas Instruments
Low stock

The 74ALVTH16373VRG4 from Texas Instruments is a D-type transparent latch with 2 channels in an 8:8 configuration, tri-state outputs, in a 48-TVSOP package.

View full details

74ALVTH16244ZQLR

Texas Instruments
Low stock

The 74ALVTH16244ZQLR from Texas Instruments is a non-inverting buffer with 4 elements of 4 bits each, 3-state outputs, a 3.6 V rating, in a 56-BGA Microstar Junior (7x4.5) package.

View full details

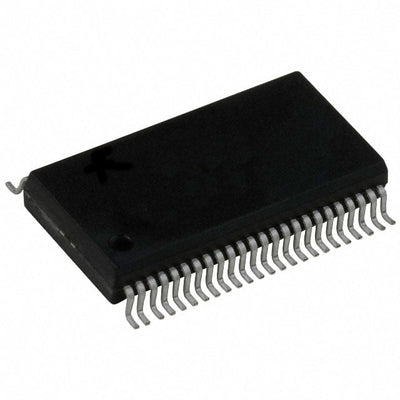

74ALVTH16244GRG4

Texas Instruments
Low stock

The 74ALVTH16244GRG4 from Texas Instruments is a non-inverting buffer with 4 elements of 4 bits each, 3-state outputs, a 3.6 V rating, in a 48-TSSOP package.

View full details

74ALVTH162245LRG4

Texas Instruments
Low stock

The 74ALVTH162245LRG4 from Texas Instruments is a non-inverting transceiver with 2 elements of 8 bits each, 3-state outputs, rated to 3.6 V, in a 48-SSOP package.

View full details

74ALVTH16601DLG4

Texas Instruments
Low stock

The 74ALVTH16601DLG4 from Texas Instruments is an 18-bit universal bus transceiver in a 56-SSOP package.

View full details

74ALVTH32374ZKER

Texas Instruments
Low stock

The 74ALVTH32374ZKER from Texas Instruments is a D-type flip-flop Integrated Circuit with 4 elements, 8 bits per element and positive edge triggering, in a 96-LFBGA package.

View full details

74ALVTH32373ZKER

Texas Instruments
Low stock

The 74ALVTH32373ZKER from Texas Instruments is a D-type transparent latch with 2 channels, an 8:8 configuration and tri-state outputs, in a 96-PBGA MICROSTAR (13.6x5.6) package.

View full details

SN74ALVTH162244GR

Texas Instruments
Low stock

The SN74ALVTH162244GR from Texas Instruments is a non-inverting buffer Integrated Circuit with 4 elements of 4 bits each, 3-state outputs and a 3.6 V rating, in a 48-TSSOP package.

View full details

SN74ALVTH162827LR

Texas Instruments
Low stock

The SN74ALVTH162827LR from Texas Instruments is a non-inverting buffer Integrated Circuit rated 3.6 V in a 56-SSOP package.

View full details

SN74ALVTH16601DL

Texas Instruments
Low stock

SN74ALVTH16601DL from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 18-bit universal bus transceiver with 3-state outputs - General-purpose transceivers. The 'ALVTH16601 devices are 18-bit universal bus transceivers designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. The devices combine D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes. Data flow in each direction is controlled by output-enable (OEAB and OEBA), latch-enable (LEAB and LEBA), and clock (CLKAB and CLKBA) inputs. The clock can be controlled by the clock-enable (CLKENAB and CLKENBA) inputs. For A-to-B data flow, the device operates in the transparent mode when LEAB is high. When LEAB is low, the A data is latched if CLKAB is held at a high or low logic level. If LEAB is low, the A data is stored in the latch/flip-flop on the low-to-high transition of CLKAB. Output enable OEAB is active low. When OEAB is low, the outputs are active. When OEAB is high, the outputs are in the high-impedance state. Data flow for B to A is similar to that of A to B, but uses OEBA, LEBA, CLKBA, and CLKENBA. This device is fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN54ALVTH16601 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16601 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16601VR

Texas Instruments
Low stock

SN74ALVTH16601VR from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 18-bit universal bus transceiver with 3-state outputs - General-purpose transceivers. The 'ALVTH16601 devices are 18-bit universal bus transceivers designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. The devices combine D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes. Data flow in each direction is controlled by output-enable (OEAB and OEBA), latch-enable (LEAB and LEBA), and clock (CLKAB and CLKBA) inputs. The clock can be controlled by the clock-enable (CLKENAB and CLKENBA) inputs. For A-to-B data flow, the device operates in the transparent mode when LEAB is high. When LEAB is low, the A data is latched if CLKAB is held at a high or low logic level. If LEAB is low, the A data is stored in the latch/flip-flop on the low-to-high transition of CLKAB. Output enable OEAB is active low. When OEAB is low, the outputs are active. When OEAB is high, the outputs are in the high-impedance state. Data flow for B to A is similar to that of A to B, but uses OEBA, LEBA, CLKBA, and CLKENBA. This device is fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN54ALVTH16601 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16601 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16601GR

Texas Instruments
Low stock

The SN74ALVTH16601GR from Texas Instruments is an 18-bit universal bus transceiver Integrated Circuit in a 56-TSSOP package.

View full details

SN74ALVTH16245VR

Texas Instruments
Low stock

SN74ALVTH16245VR from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The ’ALVTH16245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. These devices are fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. When V CC is between 0 and 1.2 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

View full details

SN74ALVTH16601DLR

Texas Instruments
Low stock

SN74ALVTH16601DLR from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 18-bit universal bus transceiver with 3-state outputs - General-purpose transceivers. The 'ALVTH16601 devices are 18-bit universal bus transceivers designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. The devices combine D-type latches and D-type flip-flops to allow data flow in transparent, latched, and clocked modes. Data flow in each direction is controlled by output-enable (OEAB and OEBA), latch-enable (LEAB and LEBA), and clock (CLKAB and CLKBA) inputs. The clock can be controlled by the clock-enable (CLKENAB and CLKENBA) inputs. For A-to-B data flow, the device operates in the transparent mode when LEAB is high. When LEAB is low, the A data is latched if CLKAB is held at a high or low logic level. If LEAB is low, the A data is stored in the latch/flip-flop on the low-to-high transition of CLKAB. Output enable OEAB is active low. When OEAB is low, the outputs are active. When OEAB is high, the outputs are in the high-impedance state. Data flow for B to A is similar to that of A to B, but uses OEBA, LEBA, CLKBA, and CLKENBA. This device is fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN54ALVTH16601 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16601 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16373VR

Texas Instruments
Low stock

The SN74ALVTH16373VR from Texas Instruments is a D-type transparent latch Integrated Circuit with 2 channels, an 8:8 configuration and tri-state outputs, in a 48-TVSOP package.

View full details

SN74ALVTH16821GR

Texas Instruments
Low stock

SN74ALVTH16821GR from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 20-Bit Bus-Interface Flip-Flops With 3-State Outputs - D-type flip-flops. The 'ALVTH16821 devices are 20-bit bus-interface flip-flops with 3-state outputs designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. The devices can be used as two 10-bit flip-flops or one 20-bit flip-flop. The 20-bit flip-flops are edge-triggered D-type flip-flops. On the positive transition of the clock (CLK), the flip-flops store the logic levels set up at the D inputs. A buffered output-enable (OE) input can be used to place the ten outputs in either a normal logic state (high or low level) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components. OE does not affect the internal operation of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN54ALVTH16821 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16821 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16240VR

Texas Instruments
Low stock

The SN74ALVTH16240VR from Texas Instruments is an inverting buffer Integrated Circuit rated 3.6 V, in a 48-TVSOP package.

View full details

SN74ALVTH32374KR

Texas Instruments
Low stock

The SN74ALVTH32374KR from Texas Instruments is a flip-flop Integrated Circuit with 4 elements, each D-type 8-bit with positive-edge triggering, in a 96-LFBGA package.

View full details

SN74ALVTH32373KR

Texas Instruments
Low stock

The SN74ALVTH32373KR from Texas Instruments is a D-type transparent latch with 2 channels, an 8:8 configuration and tri-state outputs, in a 96-LFBGA (13.5x5.5) package.

View full details

74ALVTHR16245ZQLR

Texas Instruments
Low stock

The 74ALVTHR16245ZQLR from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements of 8 bits each and 3-state output, rated 3.6 V, in a 56-BGA Microstar Junior (7x4.5) package.

View full details

SN74ALVTH16374VR

Texas Instruments
Low stock

The SN74ALVTH16374VR from Texas Instruments is a D-type flip-flop Integrated Circuit with 2 elements, 8 bits per element and positive-edge triggering, in a 48-TFSOP (0.173", 4.40mm width) package.

View full details

SN74ALVTH16373GR

Texas Instruments
Low stock

The SN74ALVTH16373GR from Texas Instruments is a D-type transparent latch Integrated Circuit with 2 channels, an 8:8 configuration and tri-state outputs, in a 48-TSSOP package.

View full details

SN74ALVTH16827DL

Texas Instruments
Low stock

SN74ALVTH16827DL from Texas Instruments is a Integrated Circuit 20-ch, 2.3-V to 3.6-V buffers with bus-hold, TTL-compatible CMOS inputs and 3-state outputs - Noninverting buffers & drivers. The 'ALVTH16827 devices are 20-bit buffers/line drivers designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. The devices are composed of two 10-bit sections with separate output-enable signals. For either 10-bit buffer section, the two output-enable (1OE1 and 1OE2, or 2OE1 and 2OE2) inputs must be low for the corresponding Y outputs to be active. If either output-enable input is high, the outputs of that 10-bit buffer section are in the high-impedance state. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN54ALVTH16827 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16827 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH162245VR

Texas Instruments
Low stock

SN74ALVTH162245VR from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The ’ALVTH162245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. The A-port outputs, which are designed to source or sink up to 12 mA, include equivalent 30- series resistors to reduce overshoot and undershoot. These devices are fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

View full details

SN74ALVTH16244DL

Texas Instruments
Low stock

SN74ALVTH16244DL from Texas Instruments is a Integrated Circuit 16-ch, 2.3-V to 3.6-V buffers with bus-hold, TTL-compatible CMOS inputs and 3-state outputs - Noninverting buffers & drivers. The 'ALVTH16244 devices are 16-bit buffers/line drivers designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, the output-enable (OE) input should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. These devices are fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. The SN54ALVTH16244 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16244 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16240GR

Texas Instruments
Low stock

The SN74ALVTH16240GR from Texas Instruments is an inverting buffer Integrated Circuit rated at 3.6 V, in a 48-TSSOP package.

View full details

SN74ALVTH16244VR

Texas Instruments
Low stock

The SN74ALVTH16244VR from Texas Instruments is a non-inverting buffer with 4 elements of 4 bits each and 3-state output, rated 3.6 V, in a 48-TVSOP package.

View full details

SN74ALVTH162245DL

Texas Instruments
Low stock

SN74ALVTH162245DL from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The ’ALVTH162245 devices are 16-bit (dual-octal) noninverting 3-state transceivers designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated. The A-port outputs, which are designed to source or sink up to 12 mA, include equivalent 30- series resistors to reduce overshoot and undershoot. These devices are fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

View full details

SN74ALVTH16374DL

Texas Instruments
Low stock

The SN74ALVTH16374DL from Texas Instruments is a 2-element 8-bit D-type flip-flop with positive edge triggering, in a 48-BSSOP (0.295", 7.50 mm width) package.

View full details

SN74ALVTH16244KR

Texas Instruments
Low stock

The SN74ALVTH16244KR from Texas Instruments is a non-inverting buffer Integrated Circuit with 4 elements of 4 bits each, 3-state outputs and a 3.6 V rating, in a 56-BGA Microstar Junior (7x4.5) package.

View full details

SN74ALVTH162244DL

Texas Instruments
Low stock

SN74ALVTH162244DL from Texas Instruments is a Integrated Circuit 16-ch, 2.3-V to 3.6-V buffers with bus-hold, TTL-compatible CMOS inputs and 3-state outputs - Noninverting buffers & drivers. The 'ALVTH162244 devices are 16-bit buffers/line drivers designed for low-voltage 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable (OE) inputs. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. All outputs are designed to sink up to 12 mA and include equivalent 30- resistors to reduce overshoot and undershoot. The SN54ALVTH162244 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH162244 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16373DLR

Texas Instruments
Low stock

SN74ALVTH16373DLR from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 16-Bit Transparent D-Type Latches With 3-State Outputs - D-type latches. The 'ALVTH16373 devices are 16-bit transparent D-type latches with 3-state outputs designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. These devices can be used as two 8-bit latches or one 16-bit latch. When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the levels set up at the D inputs. A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without interface or pullup components. OE does not affect internal operations of the latch. Old data can be retained or new data can be entered while the outputs are in the high-impedance state. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. The SN54ALVTH16373 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16373 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16374GR

Texas Instruments
Low stock

SN74ALVTH16374GR from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 16-Bit Edge-Triggered D-Type Flip-Flops With 3-State Outputs - D-type flip-flops. The 'ALVTH16374 devices are 16-bit edge-triggered D-type flip-flops with 3-state outputs designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. These devices can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CLK), the flip-flops store the logic levels set up at the data (D) inputs. A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without need for interface or pullup components. OE does not affect internal operations of the flip-flop. Old data can be retained or new data can be entered while the outputs are in the high-impedance state. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. The SN54ALVTH16374 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16374 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16821VR

Texas Instruments
Low stock

The SN74ALVTH16821VR from Texas Instruments is a dual 10-bit D-type flip-flop Integrated Circuit in a 56-TVSOP package.

View full details

SN74ALVTH16821DLR

Texas Instruments
Low stock

SN74ALVTH16821DLR from Texas Instruments is a Integrated Circuit 2.5-V/3.3-V 20-Bit Bus-Interface Flip-Flops With 3-State Outputs - D-type flip-flops. The 'ALVTH16821 devices are 20-bit bus-interface flip-flops with 3-state outputs designed for 2.5-V or 3.3-V V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. The devices can be used as two 10-bit flip-flops or one 20-bit flip-flop. The 20-bit flip-flops are edge-triggered D-type flip-flops. On the positive transition of the clock (CLK), the flip-flops store the logic levels set up at the D inputs. A buffered output-enable (OE) input can be used to place the ten outputs in either a normal logic state (high or low level) or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components. OE does not affect the internal operation of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state. When V CC is between 0 and 1.2 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.2 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. The SN54ALVTH16821 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALVTH16821 is characterized for operation from -40°C to 85°C.

View full details

SN74ALVTH16373KR

Texas Instruments
Low stock

The SN74ALVTH16373KR from Texas Instruments is a 2-channel D-type transparent latch Integrated Circuit with 8:8 channels and tri-state outputs, in a 56-BGA Microstar Junior (7x4.5) package.

View full details

SN74ALVTH16245KR

Texas Instruments
Low stock

The SN74ALVTH16245KR from Texas Instruments is a non-inverting transceiver Integrated Circuit rated 3.6 V, in a 56-BGA package.

View full details

SN74ALVTH16240DLR

Texas Instruments
Low stock

The SN74ALVTH16240DLR from Texas Instruments is an inverting buffer Integrated Circuit with 4 elements, 4 bits per element and 3-state outputs, rated 3.6 V, in a 48-SSOP package.

View full details
