Search results for “ADS823”
Products
ADS823E
Texas InstrumentsThe ADS823E from Texas Instruments is a 10-bit analog-to-digital converter (ADC) with 1 input and pipelined architecture, in a 28-SSOP package.
View full detailsADS823E/1K
Texas InstrumentsThe ADS823E/1K from Texas Instruments is a 10-bit pipelined analog-to-digital converter (ADC) with 1 input, in a 28-SSOP package.
View full detailsADS823E
Burr BrownThe ADS823E from Burr Brown is a 10-bit pipelined analog-to-digital converter (ADC) with 1 input in a 28-SSOP package.

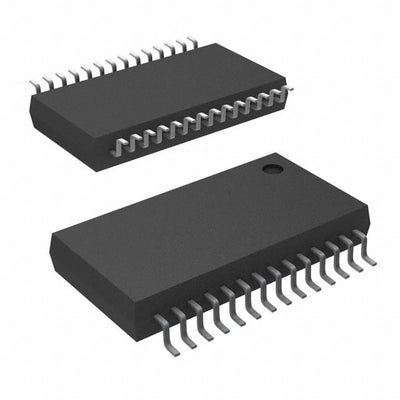

View full detailsADS823EG4
Texas InstrumentsThe ADS823EG4 from Texas Instruments is a 10-bit pipelined analog-to-digital converter with 1 input and 1 pipelined output, in a 28-SSOP package.
View full detailsADS828E
Texas InstrumentsADS828E from Texas Instruments is a Integrated Circuit 10-Bit, 75-MSPS Analog-to-Digital Converter (ADC) - High-speed ADCs (≥10 MSPS). The ADS828 is a pipeline, CMOS analog-to-digital converter that operates from a single +5V power supply. This converter provides excellent performance with a single-ended input and can be operated with a differential input for added spurious performance. This high performance converter includes a 10-bit quantizer, high bandwidth track/ hold, and a high accuracy internal reference. It also allows for the user to disable the internal reference and utilize external references. This external reference option provides excellent gain and offset matching when used in multi-channel applications or in applications where full scale range adjustment is required. The ADS828 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for medical imaging, communications, video, and test instrumentation. The ADS828 offers power dissipation of 325mW and also provides a power-down mode, thus reducing power dissipation to only 20mW. The ADS828 is specified at a maximum sampling frequency of 75MHz and a single-ended input range of 1.5V to 3.5V. The ADS828 is available in a SSOP-28 package and is pin compatible with the 10-bit, 40MHz ADS822 and ADS825, and the 10-bit, 60MHz ADS823 and ADS826.
View full detailsADS825E
Texas InstrumentsADS825E from Texas Instruments is a Integrated Circuit 10-Bit, 40-MSPS Analog-to-Digital Converter (ADC) - High-speed ADCs (≥10 MSPS). The ADS822 and ADS825 are pipeline, CMOS Analog-to-Digital Converters (ADC) that operate from a single +5V power supply. These converters provide excellent performance with a single-ended input and can be operated with a differential input for added spurious performance. These high-performance converters include a 10-bit quantizer, high-bandwidth track-and-hold, and a high-accuracy internal reference. They also allow for the user to disable the internal reference and utilize external references. This external reference option provides excellent gain and offset matching when used in multichannel applications, or in applications where full-scale range adjustment is required. The ADS822 and ADS825 employ digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for medical imaging, communications, video, and test instrumentation. The ADS822 and ADS825 offer power dissipation of 190mW and also provide a power-down mode, thus reducing power dissipation to only 20mW. The ADS825 is +3V or +5V logic I/O compatible. The ADS822 and ADS825 are specified at a maximum sampling frequency of 40MSPS and a single-ended input range of 1.5V to 3.5V. The ADS822 and ADS825 are available in an SSOP-28 package and are pin-for-pin compatible with the 10-bit, 60MSPS ADS823 and ADS826, and the 10-bit, 75MSPS ADS828, providing an upgrade path to higher sampling frequencies.
View full details
