The CD4536BPWRE4 from Texas Instruments is a programmable timer Integrated Circuit with a 5 MHz frequency, in a 16-TSSOP package.

The CD4536BNSR from Texas Instruments is a programmable timer Integrated Circuit rated at 5 MHz, in a 16-SO package.

The CD4536BDW from Texas Instruments is a programmable timer and oscillator Integrated Circuit rated at 5 MHz, in a 16-SOIC package.

The CD4536BF3A from Texas Instruments is a CMOS programmable timer Integrated Circuit for MIL applications, with the specification Counter Integrated Circuit Element Bit.

The CD4536BPWRG4 from Texas Instruments is a programmable timer and oscillator Integrated Circuit rated at 5 MHz, in a 16-TSSOP package.

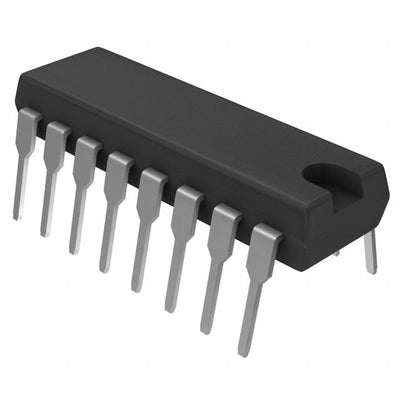

The CD4536BEG4 from Texas Instruments is a programmable timer and oscillator Integrated Circuit rated 5 MHz, in a 16-PDIP package.

The CD4536BPW from Texas Instruments is a programmable timer Integrated Circuit rated at 5 MHz, in a 16-TSSOP package.

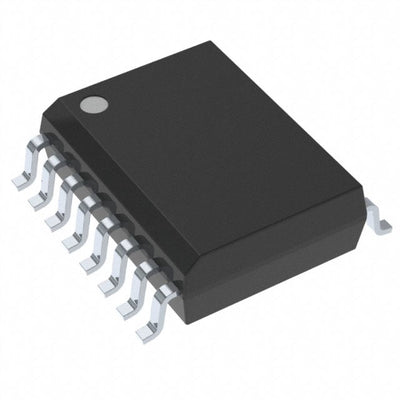

The CD4536BDWR from Texas Instruments is a programmable timer Integrated Circuit rated at 5 MHz, in a 16-SOIC package.

The CD4536BPWR from Texas Instruments is a programmable timer Integrated Circuit with 5 MHz, in a 16-TSSOP package.

The CD4536BPWE4 from Texas Instruments is a programmable timer and oscillator Integrated Circuit rated at 5 MHz, in a 16-TSSOP package.

The CD4536BD from Harris Corporation is a CMOS programmable timer counter Integrated Circuit.

The CD4536BE from Texas Instruments is a programmable timer oscillator Integrated Circuit rated 5 MHz, in a 16-PDIP package.

The CD4536BK from Harris Corporation is a CMOS programmable timer and counter Integrated Circuit.

The CD4536BNS from Texas Instruments is a binary counter Integrated Circuit rated 4000/14000/40000.

CD4536BEE4 from Texas Instruments is a CMOS Programmable Timer - Specialty logic ICs. CD4536B is a programmable timer consisting of 24 ripple-binary counter stages. The salient feature of this device is its flexibility. The device can count from 1 to 2 24 or the first 8 stages can be bypassed to allow an output, selectable by a 4-bit code, from any one of the remaining 16 stages. It can be driven by an external clock or an RC oscillator that can be constructed using on-chip components. Input IN1 serves as either the external clock input or the input to the on-chip RC oscillator. OUT1 and OUT2 are connection terminals for the external RC components. In addition, an on-chip monostable circuit is provided to allow a variable pulse width output. Various timing functions can be achieved using combinations of these capabilities. A logic 1 on the 8-BYPASS input enables a bypass of the first 8 stages and makes stage 9 the first counter stage of the last 16 stages. Selection of 1 of 16 outputs is accomplished by the decoder and the BCD inputs A, B, C and D. MONO IN is the timing input for the on-chip monostable oscillator. Grounding of the MONO IN terminal through a resistor of 10K ohms or higher, disables the one-shot circuit and connects the decoder directly to the DECODE OUT terminal. A resistor to V DD and a capacitor to ground from the MONO IN terminal enables the one-shot circuit and control its pulse width. A fast test mode is enabled by a logic 1 on 8-BYPASS, SET, and RESET. This mode divides the 24-stage counter into three 8-stage sections to facilitate a fast test sequence. The CD4536B types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (DW, DWR, and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).
