CDCVF2310MPWREP from Texas Instruments is a Integrated Circuit Enhanced Product 2.5-V to 3.3-V high performance clock buffer - Clock buffers. The CDCVF2310 is a high-performance, low-skew clock buffer that operates up to 200 MHz. Two banks of five outputs each provide low-skew copies of CLK. After power up, the default state of the outputs is low regardless of the state of the control pins. For normal operation, the outputs of bank 1Y[0:4] or 2Y[0:4] can be placed in a low state when the control pins (1G or 2G, respectively) are held low and a negative clock edge is detected on the CLK input. The outputs of bank 1Y[0:4] or 2Y[0:4] can be switched into the buffer mode when the control pins (1G and 2G) are held high and a negative clock edge is detected on the CLK input. The device operates in a 2.5-V and 3.3-V environment. The built-in output enable glitch suppression ensures a synchronized output enable sequence to distribute full period clock signals. The CDCVF2310 is characterized for operation from -55°C to 125°C.

The CDCVF2310MPWEP from Texas Instruments is a clock fanout buffer Integrated Circuit with a 1:10 ratio at 200 MHz in a 24-TSSOP package, 0.173" (4.40 mm) wide.

CDCVF2310PWR from Texas Instruments is a Integrated Circuit High performance 1:10 clock buffer for general purpose applications with support up to 105C - Clock buffers. The CDCVF2310 device is a high-performance, low-skew clock buffer that operates up to 200 MHz. Two banks of five outputs each provide low-skew copies of CLK. After power up, the default state of the outputs is low regardless of the state of the control pins. For normal operation, the outputs of bank 1Y[0:4] or 2Y[0:4] can be placed in a low state when the control pins (1G or 2G, respectively) are held low and a negative clock edge is detected on the CLK input. The outputs of bank 1Y[0:4] or 2Y[0:4] can be switched into the buffer mode when the control pins (1G and 2G) are held high and a negative clock edge is detected on the CLK input. The device operates in a 2.5-V and 3.3-V environment. The built-in output enable glitch suppression ensures a synchronized output enable sequence to distribute full period clock signals. The CDCVF2310 is characterized for operation from -40°C to 85°C.

The CDCVF2310PWRG4 from Texas Instruments is a clock fanout buffer (distribution) Integrated Circuit with 1:10 outputs at 200 MHz, in a 24-TSSOP (0.173", 4.40 mm width) package.

The CDCVF2310PWG4 from Texas Instruments is a clock buffer Integrated Circuit with 1:10 outputs at 200 MHz, in a 24-TSSOP package.

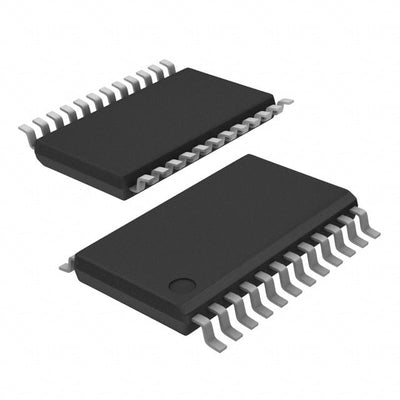

The CDCVF2310PW from Texas Instruments is a clock buffer Integrated Circuit with 1:10 fan-out and 200 MHz operation, in a 24-TSSOP package.
