CLVTH16245AQDLREP from Texas Instruments is a Integrated Circuit Enhanced Product 3.3-V Abt 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The SN74LVTH16245A is a 16-bit (dual-octal) noninverting 3-state transceiver designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. This device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the devices so that the buses effectively are isolated. Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. When V CC is between 0 V and 1.5 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. This device is fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

CLVTH16245AMDLREP from Texas Instruments is a Integrated Circuit Enhanced Product 3.3-V Abt 16-Bit Bus Transceivers With 3-State Outputs - General-purpose transceivers. The SN74LVTH16245A is a 16-bit (dual-octal) noninverting 3-state transceiver designed for low-voltage (3.3-V) V CC operation, but with the capability to provide a TTL interface to a 5-V system environment. This device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the devices so that the buses effectively are isolated. Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. When V CC is between 0 V and 1.5 V, the device is in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. This device is fully specified for hot-insertion applications using I off and power-up 3-state. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

The CLVTH16245AQDGGRQ1 from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements of 8 bits each, 3-state outputs and a 3.6 V rating, in a 48-TSSOP package.

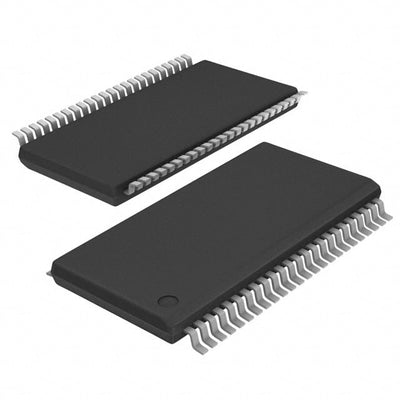

The CLVTH16245AIDGVREP from Texas Instruments is a non-inverting transceiver with 2 elements, 8 bits per element and 3-state output, rated 3.6 V, in a 48-TVSOP package.

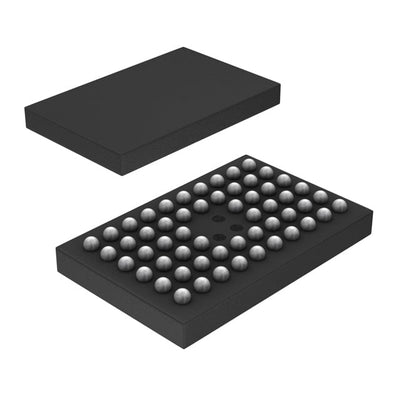

The CLVTH16245AIZQLREP from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements, 8 bits per element and 3-state output, in a 56-BGA Microstar Junior (7x4.5) package.

The CLVTH16245AIGQLREP from Texas Instruments is a non-inverting transceiver Integrated Circuit with 2 elements of 8 bits each and 3-state output, rated 3.6 V, in a 56-BGA Microstar Junior (7x4.5) package.

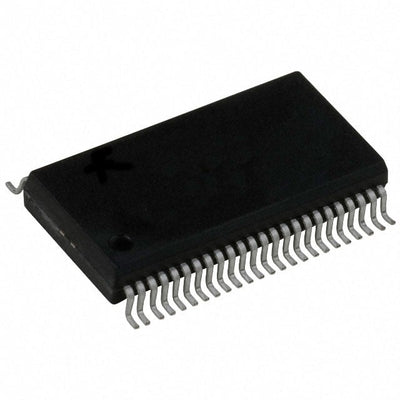

The CLVTH16245AQDGGREP from Texas Instruments is a non-inverting transceiver with 2 elements, 8 bits per element and 3-state outputs, rated at 3.6 V, in a 48-TSSOP package.
