Search results for “CRBV55, RedBox”

The CRBV55BE-2100-2200 from Crystek Corporation is a voltage-controlled oscillator with a 2150 MHz center frequency, tuning from 0.5 V to 4.5 V, with 4 ±2 dBm output power and −12 dBc typical 2nd harmonic.

The CRBV55BE-2620-2910 from Crystek Corporation is a voltage-controlled oscillator with a 2765 MHz center frequency, tuned from 1 V to 17 V, with 2 ±2 dBm output and -15 dBc typical 2nd harmonic, in a 31.75 × 14.99 mm package.

The CRBV55BE-1650-2150 from Crystek Corporation is a voltage-controlled oscillator with a 1900 MHz center frequency and a 0.5 V to 4.5 V control voltage range, with 5 ±3 dBm output power and -15 dBc typical 2nd harmonic, in a 31.75×14.99 mm package.

The CRBV55BE-2320-2750 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 2535 MHz with a 1 to 14 V control range and a 31.75 x 14.99 mm package.

The CRBV55BE-2900-3300 from Crystek Corporation is a voltage-controlled oscillator with a 3100 MHz center frequency, 0 V to 16 V control voltage, 2.5 ±2.5 dBm output power, and -15 dBc 2nd harmonic.

The CRBV55BE-2300-2600 from Crystek Corporation is a voltage controlled oscillator with a 2450 MHz center frequency in a 31.75 mm × 31.75 mm package, with 2nd harmonic performance specified in dBc.

The CRBV55BE-1220-2250 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 1735 MHz with a 0.5 to 20 V control range and a size of 31.75 x 14.99.

The CRBV55BE-2560-2920 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2740 MHz center frequency, operating from 0 V to 18 V, with ±3 dBm output, −10 dBc 2nd harmonic (typ) and 0 dB reference, in a 31.75×14.99 mm package.

The CRBV55BE-1000-1500 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 1250 MHz center frequency, tuning voltage 0.5 V to 4.5 V, 3 ±3 dBm output, -15 dBc 2nd harmonic (typ), in a 31.75 mm x 14.99 mm package.

The CRBV55BE-2710-3120 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2915 MHz center frequency, operating from 1 V to 15 V, with 5 ±2 dBm output power and -25 dBc typical 2nd harmonic, in a 31.75 x 14.99 mm package.

The CRBV55BE-2200-2570 from Crystek Corporation is a voltage-controlled oscillator with a 2385 MHz center frequency, tuning from 1 V to 17 V, with 0 ±3 dBm output power and −15 dBc typical 2nd harmonic.

The CRBV55BE-2675-2950 from Crystek Corporation is a voltage-controlled oscillator with a 2812.5 MHz center frequency, tuning from 1 V to 17 V, with 2 ±2 dBm output power and −15 dBc typical 2nd harmonic.

The CRBV55BE-1530-2900 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 2215 MHz with a 0.5 to 20 V control range and a 31.75 x 14.99 package size.

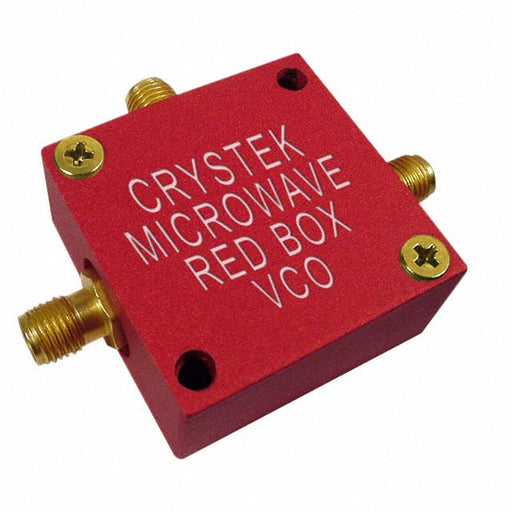

The CRBV55CL-0550-0700 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 625 MHz center frequency, tuning voltage of 0.5 V to 10.5 V, output power of 6.5 ±1.5 dBm, and 2nd harmonic of -12 dBc typical.

The CRBV55BE-2050-2474 from Crystek Corporation is a voltage-controlled oscillator with a 2262 MHz center frequency and 0 to 16 V tuning, with 0 ±3 dBm output power and -15 dBc typical 2nd harmonic.

The CRBV55BE-1874-2074 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 1974 MHz center frequency, tuning voltage 0.5 V to 4.5 V, 5 ±2 dBm output, -15 dBc 2nd harmonic (typ), in a 31.75 mm x 14.99 mm package.

The CRBV55BE-1200-2300 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 1750 MHz center frequency and a 0.5 to 20 V control voltage range, with output power of 3 ±3 dBm and 2nd harmonic of -10 dBc typical.

The CRBV55BE-2110-2170 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2140 MHz center frequency and 0.3 to 4.7 V tuning range, rated 3 ±3 dBm, with 2nd harmonic typ -15 dBc, measuring 31.75x14.99.

The CRBV55BE-3020-3265 from Crystek Corporation is a voltage-controlled oscillator with 3142.5 MHz center frequency, 0.5 V to 11.5 V tuning voltage, 5 ±2 dBm output power, -15 dBc second harmonic (typ).

The CRBV55BE-2425-2820 from Crystek Corporation is a 2622.5 MHz voltage-controlled oscillator (VCO) with a 0.5 to 18 V range.

The CRBV55BE-1848-1852 from Crystek Corporation is a 1850 MHz voltage-controlled oscillator (VCO) rated 0.5 to 2 V, measuring 31.75 × 14.99 mm.

The CRBV55BE-3100-3350 from Crystek Corporation is a voltage-controlled oscillator (4) with a 3225 MHz center frequency, a tuning voltage of 0.3 to 4.7 V, a 4 ±4 dBm level, a -30 dBc typical 2nd harmonic and a 31.75 x 14.99 size.

The CRBV55CL-0220-0256 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 238 MHz center frequency and a 1.5 V to 3.5 V control voltage range, with 0 ±3 dBm output power, a 2nd harmonic of -15 dBc (typical), in a 31.75 x 14.99 mm package.

The CRBV55BE-1970-2350 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 2160 MHz with a 1 to 14 V control range and a 31.75 x 14.99 mm package.

The CRBV55BE-2400-2670 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2535 MHz center frequency and a 1 V to 17 V tuning voltage range, with 2.5 ±2.5 dBm output power and -15 dBc 2nd harmonic (typical).

The CRBV55BE-2130-2360 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2245 MHz center frequency, tuning voltage of 0.5 V to 4.5 V, output power of 0 ±2 dBm, and 2nd harmonic of -12 dBc typical.

The CRBV55BE-1950-2150 from Crystek Corporation is a 2050 MHz voltage-controlled oscillator (VCO) with a 0.3 to 4.7 V range and 31.75 x 14.99 dimensions.

The CRBV55BE-2732-3120 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2926 MHz center frequency and a 0.5 V to 18 V tuning voltage range, with 0 ±3 dBm output power and -15 dBc 2nd harmonic (typical).

The CRBV55BE-0325-0775 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 550 MHz center frequency, tuning voltage of 0 V to 12 V, output power of 7 ±2 dBm, and 2nd harmonic of -10 dBc typical.

The CRBV55BE-1658-1662 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 1660 MHz with a 0.5 to 2 V control range, measuring 31.75 x 14.99 mm.

The CRBV55BE-2475-2900 from Crystek Corporation is a voltage-controlled oscillator with a 2687.5 MHz center frequency, tuning from 0 V to 16 V, with 2.5 ±2.5 dBm output power and −15 dBc typical 2nd harmonic.

The CRBV55BE-2900-3273 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 3086.5 MHz center frequency, tuned from 0.5 V to 18 V, with an output of 0 ±3 dBm and a 2nd harmonic of -10 dBc typical.

The CRBV55BE-1480-1600 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 1540 MHz center frequency, tuning voltage 0.5 V to 4.5 V, 6.5 ±1.5 dBm output, -15 dBc 2nd harmonic (typ), in a 31.75 mm x 14.99 mm package.

The CRBV55CL-0138-0174 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 156 MHz center frequency and 1.5 V to 3.5 V control voltage, with 0 ±3 dBm output power and a -15 dBc typical 2nd harmonic, in a 31.75 x 14.99 mm package.

The CRBV55CL-0358-0376 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 367 MHz with a 1.5 to 3.5 V control range and a 31.75 x 14.99 package size.

The CRBV55CL-0403-0421 from Crystek Corporation is a voltage-controlled oscillator with a 412 MHz center frequency and 1.5 to 3.5 V tuning, with 0 ±4 dBm output power and -15 dBc typical 2nd harmonic.

The CRBV55BE-0960-1200 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 1080 MHz with a 0.5 to 4.5 V control range and a 31.75 x 14.99 package size.

The CRBV55CL-0900-0940 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 920 MHz center frequency, rated in dBm with 2nd harmonic in dBc (typ), in a 31.75 mm x 14.99 mm package.

The CRBV55CL-1188-1212 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 1200 MHz with a 0.5 to 4.5 V control range and a size of 31.75 x 14.99.

The CRBV55BE-2300-2500 from Crystek Corporation is a 2400 MHz voltage-controlled oscillator (VCO) with a 0.5 to 11 V range and 31.75 x 14.99 dimensions.

The CRBV55BE-2270-2330 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2300 MHz center frequency and 1 V to 5 V control voltage, with 5 ±2 dBm output power and a -12 dBc typical 2nd harmonic, in a 31.75 x 14.99 mm package.

The CRBV55BE-1690-2062 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 1876 MHz center frequency, operating from 0 V to 5 V, with 5 ±2 dBm output power and -22 dBc second harmonic (typical), in a 31.75 x 14.99 mm package.

The CRBV55BH-4100-4300 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 4200 MHz with a 0.5 to 4.5 V control range and a size of 31.75 x 14.99.

The CRBV55CL-0180-0200 from Crystek Corporation is a voltage-controlled oscillator (VCO) at 190 MHz with a 0.5 to 4.5 V control range and a 31.75 x 14.99 package size.

The CRBV55CL-0490-0540 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 515 MHz center frequency, tuning voltage 0.5 V to 4.5 V, 3 ±3 dBm output, -12 dBc 2nd harmonic (typ), in a 31.75 mm x 14.99 mm package.

The CRBV55BE-2430-2585 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2507.5 MHz center frequency, tuning voltage 0.2 V to 4.8 V, 2 ±2 dBm output, -16 dBc 2nd harmonic (typ).

The CRBV55CL-0902-0928 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 915 MHz center frequency, tuning voltage of 0.5 V to 4.5 V, output power of 5 ±3 dBm, and 2nd harmonic of -15 dBc typical.

The CRBV55BE-1530-2700 from Crystek Corporation is a voltage-controlled oscillator (VCO) with a 2115 MHz center frequency, tuning voltage 0.5 V to 10 V, 6.5 ±1.5 dBm output, -15 dBc 2nd harmonic (typ), in a 31.75 mm x 14.99 mm package.
