Search results for “ISO122”

ISO122PE4 from Texas Instruments is a ±10-V input, voltage sensing isolated amplifier - Isolated amplifiers. The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO122 is easy to use. No external components are required for operation. The key specifications are 0.020% maximum nonlinearity, 50-kHz signal bandwidth, and 200-V/°C V OS drift. A power supply range of 4.5 V to 18 V and quiescent currents of 5 mA on V S1 and ±5.5 mA on V S2 make the ISO122 ideal for a wide range of applications. The ISO122 is available in 16-pin plastic DIP and 28-lead plastic surface-mount packages.

ISO122UE4 from Texas Instruments is a ±10-V input, voltage sensing isolated amplifier - Isolated amplifiers. The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO122 is easy to use. No external components are required for operation. The key specifications are 0.020% maximum nonlinearity, 50-kHz signal bandwidth, and 200-V/°C V OS drift. A power supply range of 4.5 V to 18 V and quiescent currents of 5 mA on V S1 and ±5.5 mA on V S2 make the ISO122 ideal for a wide range of applications. The ISO122 is available in 16-pin plastic DIP and 28-lead plastic surface-mount packages.

ISO122JUE4 from Texas Instruments is a ±10-V input, voltage sensing isolated amplifier - Isolated amplifiers. The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO122 is easy to use. No external components are required for operation. The key specifications are 0.020% maximum nonlinearity, 50-kHz signal bandwidth, and 200-V/°C V OS drift. A power supply range of 4.5 V to 18 V and quiescent currents of 5 mA on V S1 and ±5.5 mA on V S2 make the ISO122 ideal for a wide range of applications. The ISO122 is available in 16-pin plastic DIP and 28-lead plastic surface-mount packages.

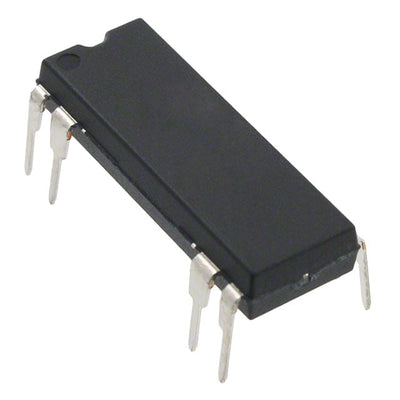

ISO122PG4 from Texas Instruments is a IC OPAMP ISOLATION 1 CIRC 8DIP

ISO122JPE4 from Texas Instruments is a IC OPAMP ISOLATION 1 CIRC 8DIP

ISO122U from Texas Instruments is a IC OPAMP ISOLATION 1 CIRC 8SOIC

The ISO122JP from Texas Instruments is an isolation amplifier Integrated Circuit with 1 circuit in an 8-PDIP package.

ISO122U/1K from Texas Instruments is a IC OPAMP ISOLATION 1 CIRC 8SOIC

ISO122P from Texas Instruments is a IC OPAMP ISOLATION 1 CIRC 8DIP

ISO122JUG4 from Texas Instruments is a IC OPAMP ISOLATION 1 CIRC 8SOIC

ISO122JU/1K from Texas Instruments is a IC OPAMP ISOLATION 1 CIRC 8SOIC

ISO122JU from Texas Instruments is a IC OPAMP ISOLATION 1 CIRC 8SOIC

The ISO122JUE4 from Burr Brown is a 10 V voltage-input isolated amplifier Integrated Circuit for data acquisition, in an 8-SOIC package.

The ISO122UE4 from Burr Brown is a 10 V voltage-input isolated amplifier Integrated Circuit for data acquisition, in an 8-SOIC package.

The ISO122JU from Burr Brown is an isolation amplifier with 1 circuit, in an 8-SOIC package.
