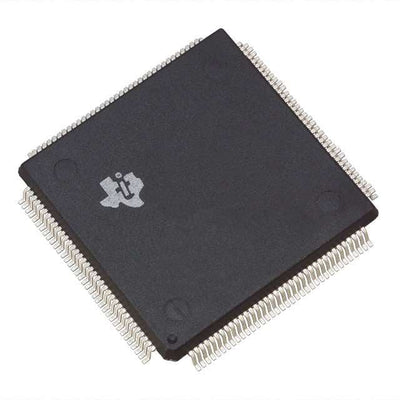

The SM320C32PCMM60EP from Texas Instruments is a digital signal processor Integrated Circuit at 60 MHz in a 144-QFP package.

The SM320C32PCMM50EP from Texas Instruments is a digital signal processor Integrated Circuit in a 144-QFP package.

The SM320VC5421PGE20EP from Texas Instruments is a fixed-point digital signal processor (DSP) Integrated Circuit in a 144-LQFP package.

The SM320C50PQI80EP from Texas Instruments is a digital signal processor Integrated Circuit rated at 80 MHz, in a 132-QFP package.

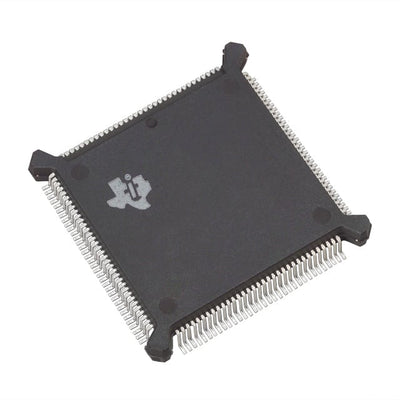

The SM320C50PQM66EP from Texas Instruments is a digital signal processor Integrated Circuit rated 66 MHz, in a 132-QFP package.

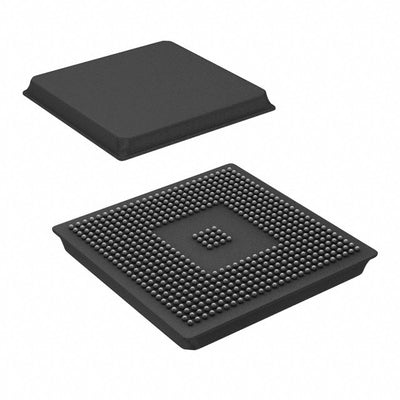

The SM320DM642AGDKI7EP from Texas Instruments is a fixed-point DSP Integrated Circuit (VID) in a 548-FCBGA package.

The SM320VC33GNMM150EP from Texas Instruments is a digital signal processor Integrated Circuit in a 144-CBGA package.

The SM320LC31PQM40EP from Texas Instruments is a digital signal processor Integrated Circuit in a 132-QFP package.

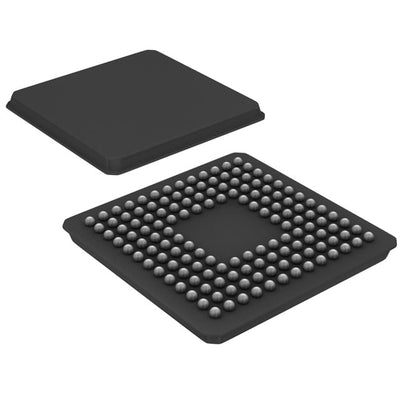

The SM320VC5416GGU16EP from Texas Instruments is a fixed-point digital signal processor Integrated Circuit in a 144-BGA package.

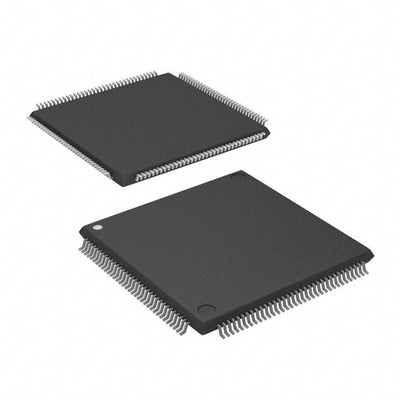

The SM320VC33PGEA120EP from Texas Instruments is a floating-point digital signal processor (DSP) Integrated Circuit in a 144-LQFP package.

The SM320VC5507PGESEP from Texas Instruments is a 16-bit digital signal processor (DSP) in a 144-LQFP package.

The SM320VC5416PGE16EP from Texas Instruments is a fixed-point digital signal processor (DSP) Integrated Circuit in a 144-LQFP package.

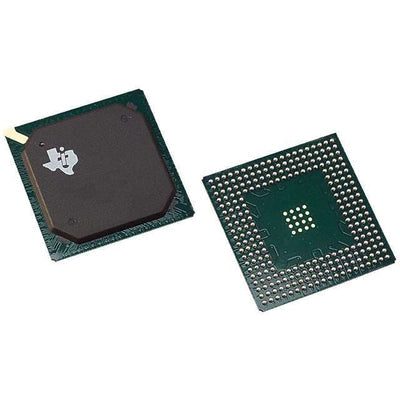

The SM320C6727BGDHMEP from Texas Instruments is a floating-point digital signal processor (DSP) Integrated Circuit in a 256-BGA package.

The SM320DM642AGDKS7EP from Texas Instruments is a fixed-point video digital signal processor (DSP) Integrated Circuit in a 548-FCBGA package.

The SM320VC5409GGU10EP from Texas Instruments is a fixed-point digital signal processor (DSP) Integrated Circuit in a 144-BGA package.

SM320C6727BHFHM from Texas Instruments is a Military grade C6727B floating-point DSP - Audio & radar DSP SoCs. The SM320C6727B is the next generation of Texas Instruments’ C67x generation of high-performance 32-/64-bit floating-point digital signal processors. Enhanced C67x+ CPU. The C67x+ CPU is an enhanced version of the C67x CPU used on the C671x DSPs. It is compatible with the C67x CPU but offers significant improvements in speed, code density, and floating-point performance per clock cycle. The CPU natively supports 32-bit fixed-point, 32-bit single-precision floating-point, and 64-bit double-precision floating-point arithmetic. Efficient Memory System. The memory controller maps the large on-chip 256K-byte RAM and 384K-byte ROM as unified program/data memory. Development is simplified since there is no fixed division between program and data memory size as on some other devices. The memory controller supports single-cycle data accesses from the C67x+ CPU to the RAM and ROM. Up to three parallel accesses to the internal RAM and ROM from three of the following four sources are supported: Two 64-bit data accesses from the C67x+ CPU One 256-bit program fetch from the core and program cache One 32-bit data access from the peripheral system (either dMAX or UHPI) The large (32K-byte) program cache translates to a high hit rate for most applications. This prevents most program/data access conflicts to the on-chip memory. It also enables effective program execution from an off-chip memory such as an SDRAM. High-Performance Crossbar Switch. A high-performance crossbar switch acts as a central hub between the different bus masters (CPU, dMAX, UHPI) and different targets (peripherals and memory). The crossbar is partially connected; some connections are not supported (for example, UHPI-to-peripheral connections). Multiple transfers occur in parallel through the crossbar as long as there is no conflict between bus masters for a particular target. When a conflict does occur, the arbitration is a simple and deterministic fixed-priority scheme. The dMAX is given highest-priority since it is responsible for the most time-critical I/O transfers, followed next by the UHPI, and finally by the CPU. dMAX Dual Data Movement Accelerator. The dMAX is a module designed to perform Data Movement Acceleration. The Data Movement Accelerator (dMAX) controller handles user-programmed data transfers between the internal data memory controller and the device peripherals on the C6727B DSPs. The dMAX allows movement of data to/from any addressable memory space including internal memory, peripherals, and external memory. The dMAX controller includes features such as the capability to perform three-dimensional data transfers for advanced data sorting, and the capability to manage a section of the memory as a circular buffer/FIFO with delay-tap based reading and writing of data. The dMAX controller is capable of concurrently processing two transfer requests (provided that they are to/from different source/destinations). External Memory Interface (EMIF) for Flexibility and Expansion. The external memory interface on the C6727B supports a single bank of SDRAM and a single bank of asynchronous memory. The EMIF data width is 16 bits wide. SDRAM support includes x16 and x32 SDRAM devices with 1, 2, or 4 banks. The C6727B extends SDRAM support to 256M-bit and 512M-bit devices. Asynchronous memory support is typically used to boot from a parallel non-multiplexed NOR flash device that can be 8, 16, or 32 bits wide. Booting from larger flash devices than are natively supported by the dedicated EMIF address lines is accomplished by using general-purpose I/O pins for upper address lines. The asynchronous memory interface can also be configured to support 8- or 16-bit-wide NAND flash. It includes a hardware ECC calculation (for single-bit errors) that can operate on blocks of data up to 512 bytes. Universal Host-Port Interface (UHPI) for High-Speed Parallel I/O. The Universal Host-Port Interface (UHPI) is a parallel interface through which an external host CPU can access memories on the DSP. Three modes are supported by the C6727B UHPI: Multiplexed Address/Data - Half-Word (16-bit-wide) Mode (similar to C6713) Multiplexed Address/Data - Full Word (32-bit-wide) Mode Non-Multiplexed Mode - 16-bit Address and 32-bit Data Bus The UHPI can also be restricted to accessing a single page (64K bytes) of memory anywhere in the address space of the C6727B; this page can be changed, but only by the C6727B CPU. This feature allows the UHPI to be used for high-speed data transfers even in systems where security is an important requirement. The UHPI is only available on the C6727B. Multichannel Audio Serial Ports (McASP0, McASP1, and McASP2) - Up to 16 Stereo Channels I2S. The multichannel audio serial port (McASP) seamlessly interfaces to CODECs, DACs, ADCs, and other devices. It supports the ubiquitous IIS format as well as many variations of this format, including time division multiplex (TDM) formats with up to 32 time slots. Each McASP includes a transmit and receive section which may operate independently or synchronously; furthermore, each section includes its own flexible clock generator and extensive error-checking logic. As data passes through the McASP, it can be realigned so that the fixed-point representation used by the application code can be independent of the representation used by the external devices without requiring any CPU overhead to make the conversion. The McASP is a configurable module and supports between 2 and 16 serial data pins. It also has the option of supporting a Digital Interface Transmitter (DIT) mode with a full 384 bits of channel status and user data memory. Inter-Integrated Circuit Serial Ports (I2C0, I2C1). The C6727B includes two inter-integrated circuit (I2C) serial ports. A typical application is to configure one I2C serial port as a slave to an external user-interface microcontroller. The other I2C serial port may then be used by the C6727B DSP to control external peripheral devices, such as a CODEC or network controller, which are functionally peripherals of the DSP device. The two I2C serial ports are pin-multiplexed with the SPI0 serial port. Serial Peripheral Interface Ports (SPI0, SPI1). As in the case of the I2C serial ports, the C6727B DSP also includes two serial peripheral interface (SPI) serial ports. This allows one SPI port to be configured as a slave to control the DSP while the other SPI serial port is used by the DSP to control external peripherals. The SPI ports support a basic 3-pin mode as well as optional 4- and 5-pin modes. The optional pins include a slave chip-select pin and an enable pin which implements handshaking automatically in hardware for maximum SPI throughput. The SPI0 port is pin-multiplexed with the two I2C serial ports (I2C0 and I2C1). The SPI1 serial port is pin-multiplexed with five of the serial data pins from McASP0 and McASP1. Real-Time Interrupt Timer (RTI). The real-time interrupt timer module includes: Two 32-bit counter/prescaler pairs Two input captures (tied to McASP direct memory access [DMA] events for sample rate measurement) Four compares with automatic update capability Digital Watchdog (optional) for enhanced system robustness Clock Generation (PLL and OSC). The C6727B DSP includes an on-chip oscillator that supports crystals in the range of 12 MHz to 25 MHz. Alternatively, the clock can be provided externally through the CLKIN pin. The DSP includes a flexible, software-programmable phase-locked loop (PLL) clock generator. Three different clock domains (SYSCLK1, SYSCLK2, and SYSCLK3) are generated by dividing down the PLL output. SYSCLK1 is the clock used by the CPU, memory controller, and memories. SYSCLK2 is used by the peripheral subsystem and dMAX. SYSCLK3 is used exclusively for the EMIF.

SM320C6201GJCA20EP from Texas Instruments is a Integrated Circuit Enhanced product C6201 fixed point DSP - Audio & radar DSP SoCs. The TMS320C62x™ DSPs (including the SM320C6201-EP) are the fixed-point DSP family in the TMS320C6000 ™DSP platform. The C6201 device is based on the high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications. With performance of up to 1600 MIPS at a clock rate of 200 MHz, the C6201 offers cost-effective solutions to high-performance DSP programming challenges. The C6201 DSP possesses the operational flexibility of high-speed controllers and the numerical capability of array processors. The processor has 32 general-purpose registers of 32-bit word length and eight highly independent functional units. The eight functional units provide six arithmetic logic units (ALUs) for a high degree of parallelism and two 16-bit multipliers for a 32-bit result. The C6201 can produce two multiply-accumulates (MACs) per cycle-for a total of 466 million MACs per second (MMACS). The C62x™ DSP also has application-specific hardware logic, on-chip memory, and additional on-chip peripherals. The C6201 includes a large bank of on-chip memory and has a powerful and diverse set of peripherals. Program memory consists of a 64K-byte block that is user-configurable as cache or memory-mapped program space. Data memory of the C6201 consists of two 32K-byte blocks of RAM for improved concurrency. The peripheral set includes two multichannel buffered serial ports (McBSPs), two general-purpose timers, a host-port interface (HPI), and a glueless external memory interface (EMIF) capable of interfacing to SDRAM or SBSRAM and asynchronous peripherals. The C62x™ DSP has a complete set of development tools which includes: a new C compiler, an assembly optimizer to simplify programming and scheduling, and a Windows™ debugger interface for visibility into source code execution.

The SM320C6455BGTZSEP from Texas Instruments is a fixed-point digital signal processor Integrated Circuit in a 697-FCBGA package.

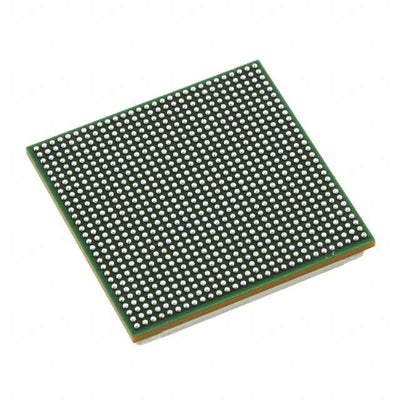

The SM320C6678ACYPW from Texas Instruments is a digital signal processor (DSP) Integrated Circuit.

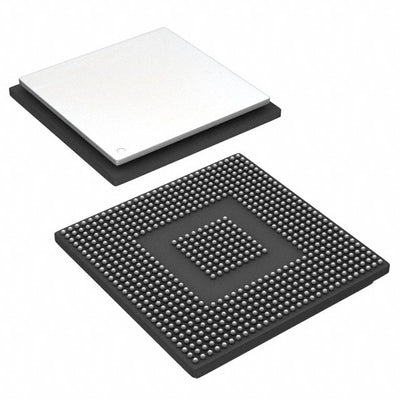

The SM320C6455BGTZEP from Texas Instruments is a fixed-point digital signal processor (DSP) Integrated Circuit in a 697-FCBGA package.

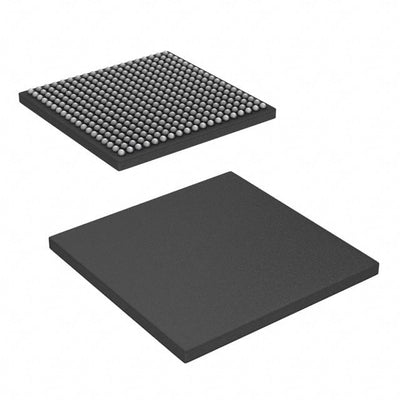

The SM320DM6446AZWTA from Texas Instruments is a digital media system-on-chip (SoC) DSP device in a 361-NFBGA package.

SM320C6701GJCA12EP from Texas Instruments is a Integrated Circuit Enhanced product C6701 floating-point DSP - Audio & radar DSP SoCs. The 320C67x DSPs are the floating-point DSP family in the TMS320C6000™ DSP platform. The SM320C6701-EP and SM320C6701MECH-EP (C6701) devices are based on the high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making this DSP an excellent choice for multichannel and multifunction applications. With performance of up to 1 giga floating-point operations per second (GFLOPS) at a clock rate of 167 MHz, the ’C6701 offers cost-effective solutions to high-performance DSP programming challenges. The ’C6701 DSP possesses the operational flexibility of high-speed controllers and the numerical capability of array processors. This processor has 32 general-purpose registers of 32-bit word length and eight highly independent functional units. The eight functional units provide four floating-/fixed-point ALUs, two fixed-point ALUs, and two floating-/fixed-point multipliers. The ’C6701 can produce two multiply-accumulates (MACs) per cycle for a total of 334 million MACs per second (MMACS). The ’C6701 DSP also has application-specific hardware logic, on-chip memory, and additional on-chip peripherals. The ’C6701 includes a large bank of on-chip memory and has a powerful and diverse set of peripherals. Program memory consists of a 64K-byte block that is user-configurable as cache or memory-mapped program space. Data memory consists of two 32K-byte blocks of RAM. The peripheral set includes two multichannel buffered serial ports (McBSPs), two general-purpose timers, a host-port interface (HPI), and a glueless external memory interface (EMIF) capable of interfacing to SDRAM or SBSRAM and asynchronous peripherals. The ’C6701 has a complete set of development tools which includes: a new C compiler, an assembly optimizer to simplify programming and scheduling, and a Windows™ debugger interface for visibility into source code execution.

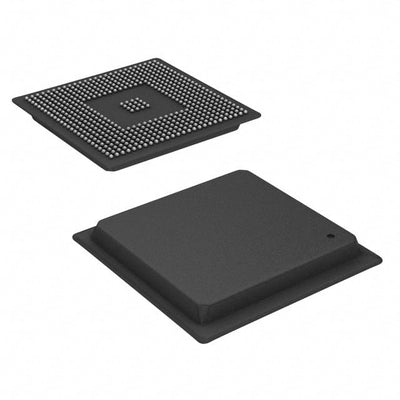

The SM320DM642AZDKI7 from Texas Instruments is a digital signal processor (DSP) Integrated Circuit.

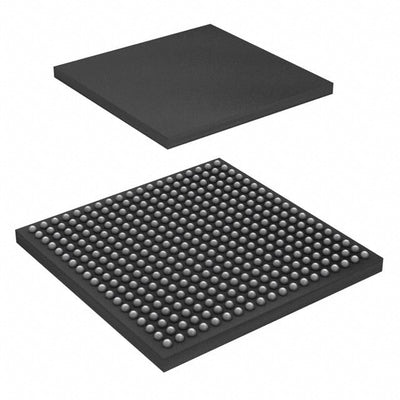

The SM320C6748EGWTS3 from Texas Instruments is a digital signal processor (DSP) Integrated Circuit.

The SM320F28335PTPS from Texas Instruments is a C28x C2000 Delfino 32-bit single-core MCU running at 150MHz with 512KB (256K x 16) flash, in a 176-HLQFP (24x24) package.

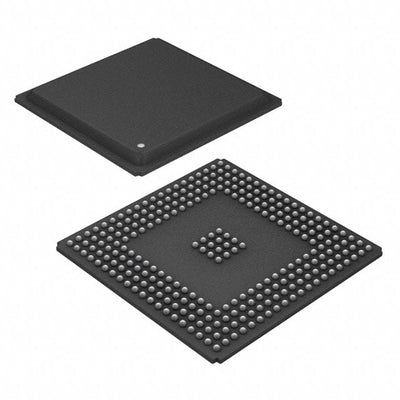

The SM320C6713GDPS20EP from Texas Instruments is a floating-point digital signal processor (DSP) Integrated Circuit in a 272-BGA package.

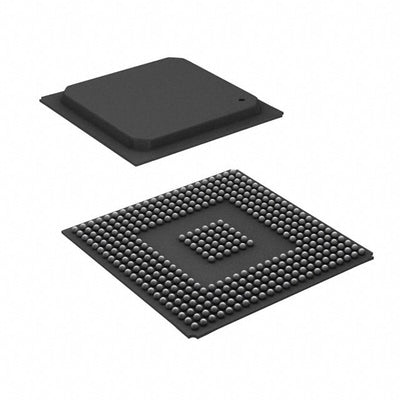

The SM320C6424GDUQ6EP from Texas Instruments is a fixed-point digital signal processor (DSP) Integrated Circuit in a 376-BGA package.

The SM320F2812HFGS150 from Texas Instruments is a C28x C2000 fixed-point 32-bit single-core microcontroller running at 150 MHz with 256 KB (128K x 16) flash memory, in a 172-CFP package.

The SM320C40GFM50 from Texas Instruments is a floating-point digital signal processor (DSP) Integrated Circuit.

SM320F2812HFGM150 from Texas Instruments is a Integrated Circuit C2000™ enhanced product 32-bit MCU with 150-MHz, 256-kb Flash, EMIF - Real-time digital power MCUs. The SM320F2812 device, member of the C28x™ DSP generation, is a highly integrated, high-performance solution for demanding control applications. The functional blocks and the memory maps are described in Section 3, Functional Overview. Throughout this document, SM320F2812 is abbreviated as F2812.

The SM320F28335GBS from Texas Instruments is a C28x C2000 C28x Delfino microcontroller Integrated Circuit with single-core 32-bit architecture running at 150 MHz and 512KB (256K x 16) flash memory, in a 181-CPGA (40x40) package.

SM320C31HFGM40 from Texas Instruments is a Digital Signal Processors - Audio & radar DSP SoCs. The SMJ320C31, SMJ320LC31, and SMQ320LC31 digital signal processors (DSPs) are 32-bit, floating-point processors manufactured in 0.6-µm triple-level-metal CMOS technology. The devices are part of the SMJ320C3x generation of DSPs from Texas Instruments. The SMJ320C3x internal busing and special digital-signal-processing instruction set have the speed and flexibility to execute up to 60 MFLOPS. The SMJ320C3x optimizes speed by implementing functions in hardware that other processors implement through software or microcode. This hardware-intensive approach provides performance previously unavailable on a single chip. The SMJ320C3x can perform parallel multiply and ALU operations on integer or floating-point data in a single cycle. Each processor also possesses a general-purpose register file, a program cache, dedicated ARAUs, internal dual-access memories, one DMA channel supporting concurrent I/O, and a short machine-cycle time. High performance and ease of use are results of these features. General-purpose applications are greatly enhanced by the large address space, multiprocessor interface, internally and externally generated wait states, one external interface port, two timers, one serial port, and multiple-interrupt structure. The SMJ320C3x supports a wide variety of system applications from host processor to dedicated coprocessor. High-level-language support is easily implemented through a register-based architecture, large address space, powerful addressing modes, flexible instruction set, and well-supported floating-point arithmetic. For additional information when designing for cold temperature operation, please see Texas Instruments application report 320C3x, 320C4x and 320MCM42x Power-up Sensitivity at Cold Temperature, literature number SGUA001.

SM320C31HFGM50 from Texas Instruments is a Digital Signal Processors - Audio & radar DSP SoCs. The SMJ320C31, SMJ320LC31, and SMQ320LC31 digital signal processors (DSPs) are 32-bit, floating-point processors manufactured in 0.6-µm triple-level-metal CMOS technology. The devices are part of the SMJ320C3x generation of DSPs from Texas Instruments. The SMJ320C3x internal busing and special digital-signal-processing instruction set have the speed and flexibility to execute up to 60 MFLOPS. The SMJ320C3x optimizes speed by implementing functions in hardware that other processors implement through software or microcode. This hardware-intensive approach provides performance previously unavailable on a single chip. The SMJ320C3x can perform parallel multiply and ALU operations on integer or floating-point data in a single cycle. Each processor also possesses a general-purpose register file, a program cache, dedicated ARAUs, internal dual-access memories, one DMA channel supporting concurrent I/O, and a short machine-cycle time. High performance and ease of use are results of these features. General-purpose applications are greatly enhanced by the large address space, multiprocessor interface, internally and externally generated wait states, one external interface port, two timers, one serial port, and multiple-interrupt structure. The SMJ320C3x supports a wide variety of system applications from host processor to dedicated coprocessor. High-level-language support is easily implemented through a register-based architecture, large address space, powerful addressing modes, flexible instruction set, and well-supported floating-point arithmetic. For additional information when designing for cold temperature operation, please see Texas Instruments application report 320C3x, 320C4x and 320MCM42x Power-up Sensitivity at Cold Temperature, literature number SGUA001.

The SM320F28335GJZMEP from Texas Instruments is a C28x C2000 Delfino 32-bit single-core microcontroller Integrated Circuit at 150 MHz with 512KB (256K x 16) flash memory in a 176-BGA (15x15) package.

The SM320F2812PGFMEPG4 from Texas Instruments is a C28x C2000 fixed-point 32-bit single-core MCU Integrated Circuit with 150 MHz operation and 256KB (128K x 16) flash memory, in a 176-LQFP (24x24) package.

SM320C6701GLPW14 from Texas Instruments is a Single core C67x floating-point DSP engineered for military and defense applications. Operating at speeds up to 167MHz, this processor delivers high-performance signal processing for audio and radar DSP systems. Built on proven C67x architecture, it provides the computational power and reliability required for demanding embedded signal processing tasks in aerospace and defense environments.

The SM320F2812PGFMEP from Texas Instruments is a C28x C2000 C28x fixed-point microcontroller Integrated Circuit with single-core 32-bit architecture running at 150 MHz and 256KB (128K x 16) flash memory, in a 176-LQFP (24x24) package.

The SM320F28335PTPMEP from Texas Instruments is a 32-bit single-core C28x C2000 Delfino microcontroller with 150 MHz, 512 KB (256K x 16) flash, in a 176-HLQFP (24x24) package.

The SM320F2808PZMEP from Texas Instruments is a 32-bit C28x C2000 fixed-point microcontroller (MCU) with single-core operation at 100 MHz and 128 KB (64K x 16) flash memory in a 100-LQFP (14x14) package.

SM320C40GFM40 from Texas Instruments is a military-grade floating-point digital signal processor (DSP) featuring the C40 architecture. Housed in a 325-pin CPGA ceramic package, this component delivers high-performance signal processing for demanding aerospace, defense, and industrial applications. Operating temperature range: -55°C to 125°C, ensuring reliable operation in extreme environments.

The SM320F2801PZMEP from Texas Instruments is a C28x C2000 fixed-point 32-bit single-core microcontroller operating at 100 MHz, with 32 KB (16K x 16) flash memory in a 100-LQFP (14x14) package.
