The TPSM-10-15-SP from Tycon Systems Inc. is a single-arm side-of-pole mounting bracket.

TPSM5D1806MRDBR-ET from Texas Instruments is a 4.5-V to 15-V input, dual 6-A, single 12-A, output power module with -55°C operating temperature - Power modules (integrated inductor). The TPSM5D1806E dual 6-A output power module is a highly integrated and flexible DC-DC power supply packaged in a compact 8-mm × 5.5-mm × 1.8-mm QFN package. The input voltage range of 4.5 V to 15 V allows conversion from a wide intermediate bus as well as standard 5-V and 12-V rails. The two 6-A outputs can be configured independently for two separate power rails or combined for a single 2-phase, 12-A output. The low-profile, 51-pin QFN package with optimal package layout enhances thermal performance. The enhanced temperature performance of -55°C enables aerospace applications in environments such as outside cabin-mounted modules or flight control units. The package footprint has all signal pins accessible from the perimeter and large thermal pads beneath the device for simple layout and easy handling in manufacturing. The integrated power design eliminates the loop compensation and magnetics part selection from the design process. The device offers independent enable control and power-good signal for each output. Switching frequency and phase offsetting can be configured using pin-strapping. The device also offers overcurrent and thermal shutdown protection.

TPSM82913RDUR from Texas Instruments is a 17-V VIN, 3-A low-noise and low-ripple buck module with integrated ferrite bead filter compensation - Power modules (integrated inductor). The TPSM8291x devices are a family of high-efficiency, low-noise and low-ripple current mode synchronous buck power modules. The devices are ideal for noise sensitive applications that would normally use an LDO for post regulation such as high-speed ADCs, clock and jitter cleaner, serializer, de-serializer, and radar applications. The devices operate at a fixed switching frequency of 2.2 MHz or 1 MHz and can be synchronized to an external clock. To further reduce the output voltage ripple, the device integrates loop compensation to operate with an optional second-stage ferrite bead L-C filter. This feature allows an output voltage ripple below 10 µVRMS. Low-frequency noise levels, similar to a low-noise LDO, are achieved by filtering the internal voltage reference with an integrated capacitor on the NR/SS pin. An external capacitor can be added to the module for additional filtering. The optional spread spectrum modulation scheme spreads the DC/DC switching frequency over a wider span, which lowers the mixing spurs.

The TPSM8A28RDGR from Texas Instruments is a DC-DC converter with a 0.6 to 5.5 V range.

TPSM8D6B24MOWR from Texas Instruments is a 2.95V-to-16V input, dual 25A or single 50A PMBus® power module - Power modules (integrated inductor). The TPSM8D6B24 is a highly integrated, easy-to-use, non-isolated DC/DC buck power module. The TPSM8D6B24 provides two 25-A independent outputs or a single stacked 2-phase 50-A output. The device has an option to overdrive the internal 5-V LDO with an external 5-V supply to enable a lower input voltage range down to 2.95 V and improve the efficiency of the converter. The TPSM8D6B24 power module uses a proprietary fixed-frequency current-mode control with input feedforward and selectable internal compensation components for minimal size and stability over a wide range of output capacitances. The PMBus interface with 1-MHz clock support provides a convenient, standardized digital interface for converter configuration as well as monitoring of key parameters including output voltage, output current, and internal die temperature. Response to fault conditions can be set to restart, latch off, or ignore, depending on system requirements. Back-channel communication between stacked devices enables all TPSM8D6B24 converters, powering a single output rail to share a single address to simplify system software or firmware design. Key parameters including output voltage, switching frequency, soft-start time, and overcurrent fault limits can also be configured through BOM selection without PMBus communication to support program free power up.

The TPSM84424MOLR from Texas Instruments is a board-mount DC-DC converter with a 0.6 to 10 V range.

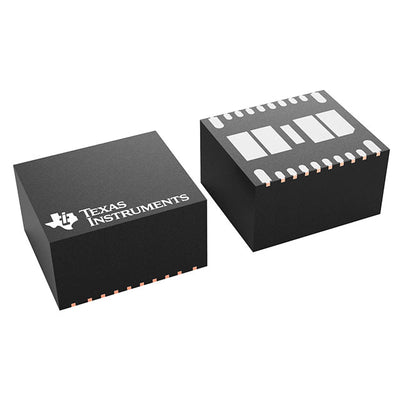

The TPSM8A29RDGR from Texas Instruments is a non-isolated point-of-load (PoL) DC-DC converter module with 1 output adjustable from 0.6 to 5.5 V at 6 A, operating from a 4 V to 16 V input.

The TPSM84203EAB from Texas Instruments is a linear regulator replacement DC-DC converter with 1 output at 3.3 V and 1.5 A, accepting 4.5 V to 28 V input.

The TPSM831D31MOA from Texas Instruments is a non-isolated PoL DC-DC converter module with 2 outputs of 0.25 to 1.52 V at 120 A and 40 A, accepting an 8 V to 14 V input.

TPSM63606EXTRDLR from Texas Instruments is a High-density, 36-V input, 1-V to 16-V output, 6-A power module with -55°C enhanced temperature range - Power modules (integrated inductor). Deriving from a family of synchronous buck modules, the TPSM63606E is a highly integrated 36-V, 6-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an Enhanced HotRod™ QFN package. The module has VIN and VOUT pins located at the corners of the package for optimized input and output capacitor placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing. With an output voltage from 1 V to 16 V, the TPSM63606E is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process. Although designed for small size and simplicity in space-constrained applications, the TPSM63606E module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate and spread spectrum option for improved EMI, integrated VCC, bootstrap, and input capacitors for increased reliability and higher density, constant switching frequency over the full load current range, and a PGOOD indicator for sequencing, fault protection, and output voltage monitoring.

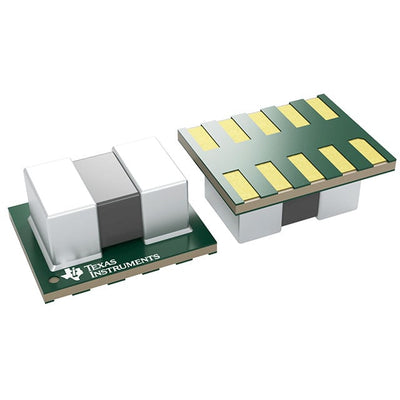

The TPSM82823ASILR from Texas Instruments is a non-isolated point-of-load DC-DC converter module with 1 output at 0.6 to 4 V and 3 A, accepting a 2.4 to 5.5 V input.

TPSM8D6C24MOWR from Texas Instruments is a 2.95-V to 16-V input, dual 35-A, PMBus® power module - Power modules (integrated inductor). The TPSM8D6C24 is a highly integrated, easy-to-use, non-isolated DC/DC buck power module. The TPSM8D6C24 provides two 35A independent outputs or a single stacked 2-phase 70A output. Two modules can be stacked for a 4-phase 140A output. The device has an option to overdrive the internal 5V LDO with an external 5V supply to enable a lower input voltage range down to 2.95V and improve the efficiency of the converter. The TPSM8D6C24 power module uses a proprietary fixed-frequency current-mode control with input feedforward and selectable internal compensation components for minimal size and stability over a wide range of output capacitances. The PMBus interface with 1MHz clock support provides a convenient, standardized digital interface for converter configuration as well as monitoring of key parameters including output voltage, output current, and internal die temperature. Response to fault conditions can be set to restart, latch off, or ignore, depending on system requirements. Back-channel communication between stacked devices enables all TPSM8D6C24 converters, powering a single output rail to share a single address to simplify system software or firmware design. Key parameters including output voltage, switching frequency, soft-start time, and overcurrent fault limits can also be configured through BOM selection without PMBus communication to support program free power up.

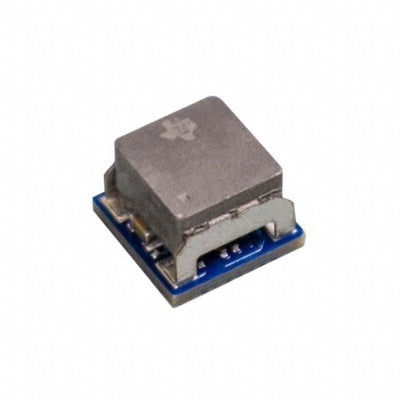

The TPSM84624MOLR from Texas Instruments is a 60 W DC-DC converter rated 0.6 to 10 V.

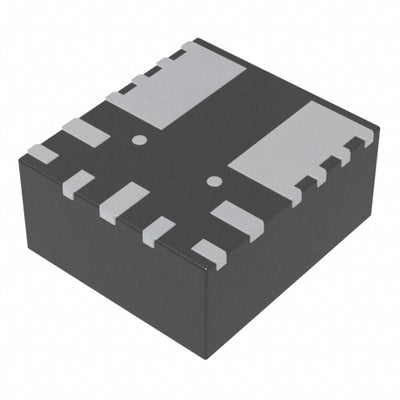

The TPSM84209RKHR from Texas Instruments is a non-isolated point-of-load DC-DC converter module with 1 adjustable output of 1.2 V to 6 V at 2.5 A, accepting a 4.5 V to 28 V input.

The TPSM82480MOPR from Texas Instruments is a DC-DC converter with a 0.6 to 5.5 V range.

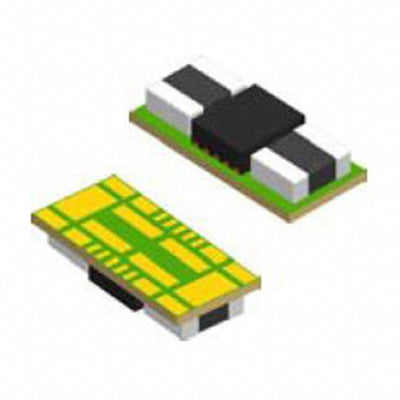

The TPSM82480MOPT from Texas Instruments is a non-isolated point-of-load (PoL) module DC-DC converter with 1 output of 0.6 to 5.5 V at 6 A and a 2.4 to 5.5 V input.

The TPSM63603V3RDHR from Texas Instruments is a high-density, non-isolated PoL module DC-DC converter with 1 output at 3.3 V and 3 A, accepting a 3 V to 36 V input.

The TPSM63603V5RDHR from Texas Instruments is a high-density, non-isolated PoL module DC-DC converter with 1 output at 5 V and 3 A, accepting a 3 V to 36 V input.

TPSM82866AA0HRDMR from Texas Instruments is a 2.4V to 5.5V input 6A step-down power module with integrated inductor - Power modules (integrated inductor). The TPSM8286xA device family consists of 4A and 6A step-down converter power modules designed for small solution size and high efficiency. The power modules integrate a synchronous step-down converter and an inductor to simplify design, reduce external components, and save PCB area. The low-profile and compact solution is designed for automated assembly by standard surface mount equipment. Tight output voltage accuracy, even with small output capacitors, is achieved though the DCS-Control architecture and the excellent load transient performance. At medium-to-heavy loads, the converter operates in PWM mode and automatically enters power save mode operation at light load to maintain high efficiency over the entire load current range. The devices can also be forced in PWM mode operation for the smallest output voltage ripple. The EN and PG pins, which support sequencing configurations, bring a flexible system design. An integrated soft start reduces the inrush current required from the input supply. The RDJ package supports thin designs with 1.4mm height.

The TPSM846C24MOLR from Texas Instruments is a non-isolated point-of-load DC-DC converter module with 1 output at 0.5 to 2 V and 35 A, accepting a 4.5 to 15 V input.

The TPSM63610RDFR from Texas Instruments is a high-density DC-DC converter with a 36 V input.

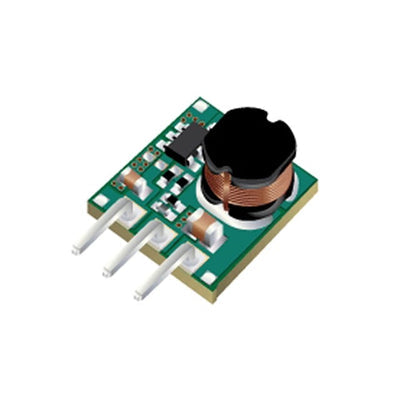

The TPSM84205EAB from Texas Instruments is a board-mount DC-DC converter that replaces a linear regulator, with 1 output at 5 V and 1.5 A and a 7 V to 28 V input.

The TPSM82901SISR from Texas Instruments is a high-efficiency DC-DC converter rated for 3 V to 17 V and 1 A.

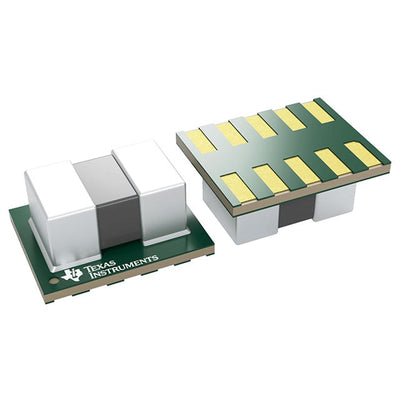

The TPSM82822ASILR from Texas Instruments is a DC-DC converter rated 0.6 to 4 V.

The TPSM63606SRDLR from Texas Instruments is a non-isolated point-of-load (PoL) DC-DC converter module with 1 output at 1 to 16 V and 6 A, accepting a 3 V to 36 V input.

The TPSM84212EAB from Texas Instruments is a board-mount DC-DC converter with 1 output at 12 V and 1.5 A, operating from a 14.5 V to 28 V input.

The TPSM63603RDHR from Texas Instruments is a non-isolated point-of-load DC-DC converter module with 1 output at 1 to 16 V and 3 A, accepting 3 V to 36 V input.

The TPSM63602V5RDHR from Texas Instruments is a non-isolated PoL DC-DC converter module with one 5 V, 2 A output and a 3 V to 36 V input (3.6 V to 36 V input and 1 V to 12 V output).

The TPSM63602V3RDHR from Texas Instruments is a non-isolated PoL module DC-DC converter with 1 output at 3.3 V and 2 A, accepting a 3.6 V to 36 V input.

The TPSM63602RDHR from Texas Instruments is a non-isolated point-of-load DC-DC converter module with 1 output at 1 to 16 V and 2 A, accepting a 3 V to 36 V input.

TPSM63604RDLR from Texas Instruments is a 36-V input, 16-V output, 4-A synchronous step-down DC-DC power module - Power modules (integrated inductor). Deriving from a family of synchronous buck modules, the TPSM63604 is a highly integrated 36-V, 4-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an Enhanced HotRod™ QFN package. The module has VIN and VOUT pins located at the corners of the package for optimized input and output capacitor placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing. With an output voltage from 1 V to 16 V, the TPSM63604 is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process. Although designed for small size and simplicity in space-constrained applications, the TPSM63604 module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate for improved EMI, integrated VCC, bootstrap, and input capacitors for increased reliability and higher density, constant switching frequency over the full load current range, negative output voltage capability, and a PGOOD indicator for sequencing, fault protection, and output voltage monitoring.

TPSM63603SRDHR from Texas Instruments is a High-density, 3-V to 36-V input, 1-V to 16-V output, 3-A power module - Power modules (integrated inductor). The TPSM63603 synchronous buck power module is a highly integrated 36-V, 3-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an Enhanced HotRod™ QFN package. The module has pins for VIN and VOUT located at the corners of the package for optimized input and output capacitor layout placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing. With an output voltage from 1 V to 16 V, the TPSM63603 is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process. Although designed for small size and simplicity in space-constrained applications, the TPSM63603 module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate and spread spectrum option for improved EMI, integrated VCC, bootstrap and input capacitors for increased reliability and higher density, constant switching frequency over the full load current range, and a PGOOD indicator for sequencing, fault protection, and output voltage monitoring.

The TPSM84A22MOJR from Texas Instruments is a regulator output DC-DC controller Integrated Circuit for 8 V to 14 V input.

The TPSM82866AA0SRDJR from Texas Instruments is a non-isolated point-of-load (PoL) module DC-DC converter with 1 output of 0.6 to 5.5 V at 6 A and a 2.4 to 5.5 V input.

The TPSM63603EXTRDHR from Texas Instruments is a non-isolated point-of-load DC-DC step-down power module with 1 output at 1 to 16 V and 3 A, accepting a 3 V to 36 V input.

The TPSM41625MOVR from Texas Instruments is a stackable non-isolated point-of-load DC-DC converter module with 1 output at 0.6 to 7 V and 25 A, accepting a 4 V to 16 V input.

TPSM82864AA0HRDMR from Texas Instruments is a 2.4-V to 5.5-V Input, 4-A thin step-down power module with integrated inductor in 3.5-mm x 4-mm QFN - Power modules (integrated inductor). The TPSM8286xA device family consists of 4A and 6A step-down converter power modules designed for small solution size and high efficiency. The power modules integrate a synchronous step-down converter and an inductor to simplify design, reduce external components, and save PCB area. The low-profile and compact solution is designed for automated assembly by standard surface mount equipment. Tight output voltage accuracy, even with small output capacitors, is achieved though the DCS-Control architecture and the excellent load transient performance. At medium-to-heavy loads, the converter operates in PWM mode and automatically enters power save mode operation at light load to maintain high efficiency over the entire load current range. The devices can also be forced in PWM mode operation for the smallest output voltage ripple. The EN and PG pins, which support sequencing configurations, bring a flexible system design. An integrated soft start reduces the inrush current required from the input supply. The RDJ package supports thin designs with 1.4mm height.

The TPSM84A21MOJR from Texas Instruments is a board-mount DC-DC power module with an 8 V to 14 V input and a 0.508 V to output range.

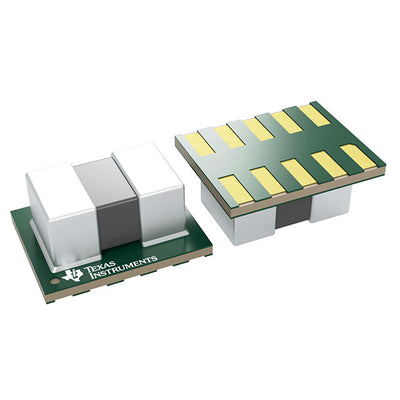

The TPSM82821ASILR from Texas Instruments is a non-isolated point-of-load DC-DC converter module with 1 output at 0.6 to 4 V and 1 A, accepting a 2.4 to 5.5 V input.

The TPSM84209RKHT from Texas Instruments is a non-isolated point-of-load DC-DC converter module with 1 output at 1.2 to 6 V and 2.5 A, accepting a 4.5 to 28 V input.

The TPSMA6L5.0A from Littelfuse Inc. is a TVS diode with 5 V working voltage, 9.2 V clamping voltage and 65.3 A peak pulse current, in a surface-mount DO-221AC package.

TPSM82816SIER from Texas Instruments is a 6-V 6-A step-down module with optional frequency synchronization, adjustable soft-start and tracking - Power modules (integrated inductor). TPSM8281x are a family of pin-to-pin, 1A, 2A, 3A, 4A, and 6A compatible high efficiency and easy to use synchronous step-down DC/DC power modules with integrated inductors. The devices are based on a fixed-frequency peak current-mode control topology. The devices are used in telecommunication, test and measurement, and medical applications with high power density and ease of use requirements. Low resistance switches allow up to 6A continuous output current at high ambient temperatures. The switching frequency is externally adjustable from 1.8MHz to 4MHz and can also be synchronized to an external clock in the same frequency range. In power save mode, the TPSM8281x automatically enters PFM at light loads to maintain high efficiency across the whole load range. The TPSM8281x provides a 1% output voltage accuracy in PWM mode which helps design a power supply with high output voltage accuracy. The SS/TR pin sets the start-up time or tracks the output voltage to an external source. This action allows external sequencing of different supply rails and limits the inrush current during start-up.

The TPSM82864AA0SRDJR from Texas Instruments is a non-isolated point-of-load (PoL) DC-DC converter module with 1 output adjustable from 0.6 to 5.5 V at 4 A, accepting a 2.4 V to 5.5 V input.

TPSM846C23MOLR from Texas Instruments is a 4.5V to 15V Input, 0.35V to 2.0V Output, 35A PMBus Power Module - Power modules (integrated inductor). The TPSM846C23 is a 35-A fixed-frequency, PMBus-compliant, step-down power module, with PMBus commands that allow for the configuration, control, and monitoring of key power regulator functions. The module incorporates the controller, power MOSFETs, inductor, and associated components into a rugged, thermally enhanced, surface-mount package. The user supplies the input and output capacitors along with a few other passive components to set the operating parameters of the module. Two modules can be configured to work in parallel to provide up to a 70-A, two-phase power solution. The PMBus interface provides for converter configuration of output voltage, UVLO, soft start, soft stop, overcurrent, and thermal shutdown parameters. The interface also provides support for telemetry that can report the actual output voltage, output current, and device temperature. Standard PMBus warning and fault functions are also supported. The device supports PMBus communication speeds up to 400 kHz and supports a subset of the commands in the PMBus 1.3 specification. The 15-mm × 16-mm component footprint is easy to solder onto a printed circuit board and allows a compact, point-of-load design.

The TPSM63606RDLR from Texas Instruments is a non-isolated PoL DC-DC converter module with 1 output of 1 to 16 V at 6 A and a 3 V to 36 V input.

The TPSM560R6RDAR from Texas Instruments is a non-isolated point-of-load DC-DC converter module with 1 output of 1 to 6 V at 600 mA and a 4.2 to 60 V input.

The TPSMD51A from Littelfuse Inc. is a surface-mount TVS diode in a DO-214AB (SMCJ) package, with a 51 V working voltage, 82.4 V clamp and 36.4 A Ipp.

The TPSMA6L7.5A from Littelfuse Inc. is a surface-mount TVS diode with a 7.5 V working voltage (VWM), 12.9 V clamping voltage and 46.6 A peak pulse current (Ipp), in a DO-221AC package.
