Search results for “TS5V330”

The TS5V330DR from Texas Instruments is a 4-channel video switch Integrated Circuit in a 16-SOIC package.

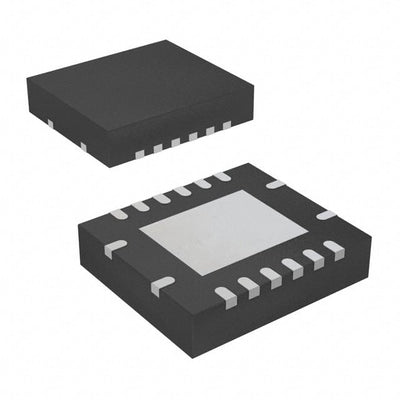

The TS5V330RGYR from Texas Instruments is a quad SPDT video switch Integrated Circuit with 4 channels, in a 16-VQFN (4x3.5) package.

The TS5V330CDR from Texas Instruments is a quad SPDT video switch Integrated Circuit with 4 channels in a 16-SOIC package.

TS5V330DBQR from Texas Instruments is a Integrated Circuit 5-V, 2:1 (SPDT), 4-channel video switch - Protocol & bus switches & muxes. The TS5V330 video switch is a 4-bit 1-of-2 multiplexer/demultiplexer with a single switch-enable (EN) input. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and the high-impedance state exists between the D and S ports. The select (IN) input controls the data path of the multiplexer/demultiplexer. Low differential gain and phase make this switch ideal for composite and RGB video applications. This device has wide bandwidth and low crosstalk, making it suitable for high-frequency applications as well. This device is fully specified for partial-power-down applications using I off. The I off feature ensures that damaging current will not backflow through the device when it is powered down. This switch maintains isolation during power off. To ensure the high-impedance state during power up or power down, EN should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The TS5V330PWG4 from Texas Instruments is a 4-channel SPDT video switch Integrated Circuit in a 16-TSSOP package.

The TS5V330CPWR from Texas Instruments is a quad SPDT video switch Integrated Circuit with 4 channels in a 16-TSSOP package.

The TS5V330PW from Texas Instruments is a video switch Integrated Circuit with 4 channels, in a 16-TSSOP package.

TS5V330CDBQR from Texas Instruments is a Integrated Circuit 5-V, 2:1 (SPDT), 4-channel video switch with improved ESD protection - Protocol & bus switches & muxes. The TS5V330C is a 4-bit 1-of-2 multiplexer/demultiplexer video switch with a single switch-enable (EN) input. The select (IN) input controls the data path of the multiplexer/demultiplexer. When EN is low, the switch is enabled and the D port is connected to the S port. When EN is high, the switch is disabled and a high impedance state exists between the D and S ports. Low differential gain and phase makes this switch ideal for video applications. The device has a wide bandwidth and low cross talk which makes it suitable for high frequency video applications. The device can be used for RGB and composite video switching applications. This device is fully specified for partial-power-down applications using I off. The I off feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off. To ensure the high-impedance state during power up or power down, EN should be tied to V CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The TS5V330PWR from Texas Instruments is a quad SPDT video switch Integrated Circuit with 4 channels, in a 16-TSSOP package.

The TS5V330D from Texas Instruments is a 4-channel video switch Integrated Circuit in a 16-SOIC package.

The TS5V330DG4 from Texas Instruments is a video switch Integrated Circuit with 4 channels, quad SPDT, in a 16-SOIC package.
