Search results for “cd4048”

The CD4048BMT from Texas Instruments is a configurable multifunction expandable gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-SOIC package.

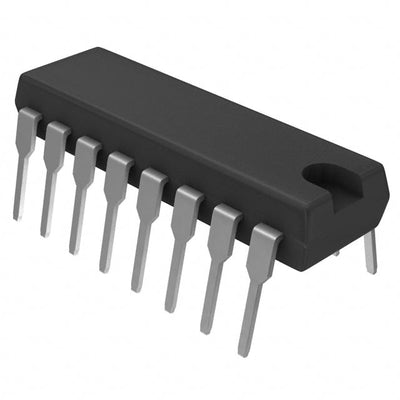

The CD4048BE from Texas Instruments is a multifunction expandable configurable gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-PDIP package.

The CD4048BNSRE4 from Texas Instruments is a multifunction expandable configurable gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-SO package.

The CD4048BPW from Texas Instruments is a configurable, expandable multifunction logic gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-TSSOP package.

The CD4048BNSRG4 from Texas Instruments is a configurable, expandable multifunction gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-SO package.

The CD4048BCN from onsemi is a multifunction, expandable, configurable gate Integrated Circuit with 1 circuit and 8 inputs, in a 14-MDIP package.

The CD4048BPWR from Texas Instruments is a multifunction expandable configurable gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-TSSOP package.

The CD4048BNSR from Texas Instruments is an expandable, configurable multifunction gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-SO package.

The CD4048BPWRG4 from Texas Instruments is a configurable, expandable multifunction gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-TSSOP package.

The CD4048BPWRE4 from Texas Instruments is a configurable, expandable multifunction gate with 1 circuit and 8 inputs, in a 16-TSSOP package.

The CD4048BE from Harris Corporation is a configurable, expandable multifunction gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-PDIP package.

The CD4048BM from Texas Instruments is a multifunction expandable configurable gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-SOIC package.

The CD4048BM96 from Texas Instruments is a configurable, expandable multifunction gate Integrated Circuit with 1 circuit and 8 inputs in a 16-SOIC package.

The CD4048AD3 from Harris Corporation is an expandable 8-input configurable logic gate in a 16-CERDIP package.

The CD4048BEX from Harris Corporation is a configurable multifunction gate Integrated Circuit with 1 circuit and 8 inputs, in a 16-PDIP package.

The CD4048BF from Harris Corporation is an expandable 8-input configurable multifunction gate Integrated Circuit with 1 circuit, in a 16-CDIP package.

CD4048BF3A from Texas Instruments is a CMOS Multifunction Expandable 8-Input Gate - Configurable gates. CD4048B is an 8-input gate having four control inputs. Three binary control inputs - Ka, Kb, and Kc - provide the implementation of eight different logic functions. These functions are OR, NOR, AND, NAND, OR/AND, OR/NAND, AND/OR and AND/NOR. A fourth control input, Kd, provides the user with a 3-state output. When control input Kd is high, the output is either a logic 1 or a logic 0 depending on the inner states. When control input Kd is low, the output is an open circuit. This feature enables the user to connect this device to a common bus line. In addition to the eight input lines, an EXPAND input is provided that permits the user to increase the number of inputs into a CD4048B (see Fig. 2). For example, two CD4048Bs can be cascaded to provide a 16-input multifunction gate. When the EXPAND input is not used, it should be connected to V SS. The CD4048B-series types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).
