Search results for “iso7763”

The ISO7763FDWR from Texas Instruments is a 6-channel general-purpose digital isolator rated 5000 VRMS, in a 16-SOIC package.

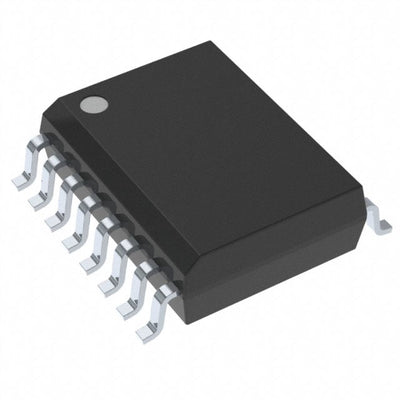

The ISO7763QDWQ1 from Texas Instruments is a 6-channel digital isolator rated 5000 VRMS, in a 16-SOIC package.

ISO7763QDBQRQ1 from Texas Instruments is a Automotive, reinforced 6-channel, 3/3, digital isolator - Digital isolators. The ISO776x-Q1 devices are high-performance, six-channel digital isolators with 5000VRMS (DW package) and 3000VRMS (DBQ package) isolation ratings per UL 1577. This family of devices is also certified according to VDE, CSA, TUV and CQC. The ISO776x-Q1 family of devices provides high-electromagnetic immunity and low emissions at low-power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic-input and logic-output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. The ISO776x-Q1 family of devices is available in all possible pin configurations such that all six channels are in the same direction, or one, two, or three channels are in reverse direction while the remaining channels are in forward direction. If the input power or signal is lost, the default output is high for devices without suffix F and low for devices with suffix F. See the Device Functional Modes section for further details. Used in conjunction with isolated power supplies, this family of devices helps prevent noise currents on data buses, such as CAN and LIN, or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, electromagnetic compatibility of the ISO776x-Q1 family of devices has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO776x-Q1 family of devices is available in 16-pin SOIC and SSOP packages.

The ISO7763FDBQR from Texas Instruments is a general-purpose 6-channel digital isolator rated 3000 Vrms, with 100 Mbps data rate, 85 kV/µs CMTI, in a 16-SSOP (0.154", 3.90 mm width) package.

The ISO7763FQDWRQ1 from Texas Instruments is a 6-channel digital isolator rated 5000 VRMS, in a 16-SOIC package.

The ISO7763QDWRQ1 from Texas Instruments is a 6-channel digital isolator rated 5000 VRMS, in a 16-SOIC package.

The ISO7763FQDWQ1 from Texas Instruments is a general-purpose 6-channel digital isolator rated 5000 Vrms, with 100 Mbps data rate, 85 kV/µs CMTI and a 16-SOIC (0.295", 7.50 mm width) package.

The ISO7763FDW from Texas Instruments is a general-purpose 6-channel digital isolator rated 5000 Vrms, with 100 Mbps data rate, 85 kV/µs CMTI, in a 16-SOIC (0.295", 7.50 mm width) package.

ISO7763FQDBQRQ1 from Texas Instruments is a Automotive, reinforced 6-channel, 3/3, digital isolator - Digital isolators. The ISO776x-Q1 devices are high-performance, six-channel digital isolators with 5000VRMS (DW package) and 3000VRMS (DBQ package) isolation ratings per UL 1577. This family of devices is also certified according to VDE, CSA, TUV and CQC. The ISO776x-Q1 family of devices provides high-electromagnetic immunity and low emissions at low-power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic-input and logic-output buffer separated by a double capacitive silicon dioxide (SiO2) insulation barrier. The ISO776x-Q1 family of devices is available in all possible pin configurations such that all six channels are in the same direction, or one, two, or three channels are in reverse direction while the remaining channels are in forward direction. If the input power or signal is lost, the default output is high for devices without suffix F and low for devices with suffix F. See the Device Functional Modes section for further details. Used in conjunction with isolated power supplies, this family of devices helps prevent noise currents on data buses, such as CAN and LIN, or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, electromagnetic compatibility of the ISO776x-Q1 family of devices has been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO776x-Q1 family of devices is available in 16-pin SOIC and SSOP packages.

The ISO7763FDBQ from Texas Instruments is a general-purpose 6-channel digital isolator rated 3000 Vrms, with 100 Mbps data rate, 85 kV/µs CMTI, in a 16-SSOP (0.154", 3.90 mm width) package.

The ISO7763DWR from Texas Instruments is a general-purpose 6-channel digital isolator rated 5000 Vrms, with 100 Mbps data rate, 85 kV/µs CMTI, in a 16-SOIC (0.295", 7.50 mm width) package.

The ISO7763DBQR from Texas Instruments is a general-purpose 6-channel digital isolator rated 3000 Vrms, with 100 Mbps data rate, 85 kV/µs CMTI, in a 16-SSOP (0.154", 3.90 mm width) package.

The ISO7763DW from Texas Instruments is a general-purpose 6-channel digital isolator rated 5000 Vrms, with 100 Mbps data rate, 85 kV/µs CMTI, in a 16-SOIC (0.295", 7.50 mm width) package.

The ISO7763DBQ from Texas Instruments is a general-purpose 6-channel digital isolator rated 3000 Vrms, with 100 Mbps data rate, 85 kV/µs CMTI, in a 16-SSOP (0.154", 3.90 mm width) package.
