The YCGO005AA from Quectel is a passive 15*15 ceramic patch RF antenna for GNSS and GPS at 1.582 GHz, covering 1.559–1.606 GHz, with an IPEX connector and adhesive mount.

The ANT-2.4-CPA from Linx Technologies Inc. is a ceramic patch RF antenna for 2.4–2.5 GHz with 5.5 dBi gain and pin adhesive mounting, for 2.45 GHz 802.15.4, Bluetooth, ISM and Wi-Fi use.

The JLT1600S18N4X from JC Antenna is a ceramic patch RF antenna at 1.6 GHz, covering 1.597–1.603 GHz with 1.5 dBic gain, in a solder surface-mount design.

The ANT8010JLC1B1516A from Pulse Electronics is a ceramic patch RF antenna for GLONASS and GPS at 1.575 GHz and 1.602 GHz, with 1.6 GHz rating, 3.62 dBi and 3.71 dBi gain and an IPEX connector.

The APKD1507G2 from Abracon LLC is an active patch antenna for GPS and GLONASS, in surface-mount (SMD) form.

The JLTD1575-1602S25N4X from JC Antenna is a ceramic patch RF antenna at 1.575 GHz and 1.602 GHz, in a pin surface-mount design.

The TQ0157AA0000 from TST is a 1575 MHz ceramic patch RF antenna with SMD type.

The TQ0130AA0000 from TST is a 1.581 GHz ceramic patch RF antenna, SMD-type.

The H2430WLPTM11I from Antenna Technologies Limited Company is a 2.43 GHz hemi patch antenna covering 2.35–2.5 GHz with 6 dBi gain, a TNC male connector and a panel mount.

The JTT1575S25P4X from JC Antenna is a ceramic patch RF antenna at 1.575 GHz, covering 1.572–1.578 GHz with 2 dBi gain, in a pin surface-mount design.

The APKD1507G2-0100S from Abracon LLC is an active GPS/GLONASS patch antenna.

The JTT915S25P4X from JC Antenna is a ceramic patch RF antenna at 903 MHz, covering 900–906 MHz, in a pin surface-mount design.

The JLTD1575-1602S18N4X from JC Antenna is a ceramic patch RF antenna at 1.575 GHz and 1.602 GHz, in a pin surface-mount design.

The ANT-GNCP-TH25AL12 from Linx Technologies Inc. is a 25 mm ceramic patch RF antenna for L1 and L2 GNSS, including Beidou, COMPASS, Galileo, GLONASS and GPS, with frequencies of 1.228 GHz, 1.246 GHz, 1.561 GHz, 1.575 GHz and 1.601 GHz, bands of 1.215–1.24 GHz, 1.243–1.25 GHz and 1.559–1.592 GHz, values of -1.9 dBi, -0.9 dBi, 0.9 dBi, 3.1 dBi and 4 dBi, and pin solder termination.

The JLTT1268-1616-2492S43-33-25P6-4-2X from JC Antenna is a ceramic patch RF antenna at 1.268 GHz, 1.616 GHz and 2.492 GHz, covering 1.265–1.271 GHz, 1.613–1.619 GHz and 1.487–2.497 GHz with 2 dBi, 3 dBi and 3 dBi gain, in a pin surface-mount design.

The 2122030001 from Molex is a 25 mm stacked GNSS and GPS ceramic patch RF antenna for 1.176 GHz and 1.575 GHz, covering 1.171–1.181 GHz and 1.57–1.58 GHz, with 3.1 dBi and 4.9 dBi gain and adhesive mount.

The JLTD1616-2492S40-25P6-4X from JC Antenna is a ceramic patch RF antenna at 1.561 GHz, 1.575 GHz, 1.616 GHz and 2.492 GHz with 3 dBi, 3.5 dBi and 4 dBi gain, in a pin surface-mount design.

The JLTD1227-1575S48-36P5-3X from JC Antenna is a two-layer ceramic patch RF antenna at 1.239 GHz and 1.594 GHz, covering 1.234–1.244 GHz and 1.589–1.599 GHz, in a pin surface-mount design.

The 2195761-1 from TE Connectivity AMP Connectors is a 25 mm x 25 mm SMD GNSS ceramic patch RF antenna with a 1.5825 GHz center, covering 1.559–1.606 GHz, with 4.7 dBi and 4.8 dBi gain and Pin Adhesive attachment.

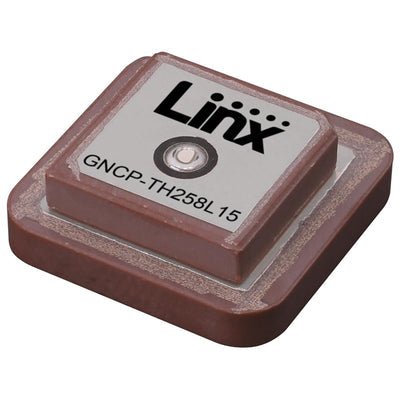

The ANT-GNCP-TH258L15 from Linx Technologies Inc. is a ceramic patch RF antenna for L1 and L5 at 1.176 and 1.5808 GHz for Beidou, Galileo, GLONASS, GNSS and GPS, covering 1.17–1.183 GHz and 1.5531–1.6086 GHz with 1 dBi and 5.6 dBi gain, a pin connector and adhesive mount.

The JLTD1616-2492S36X from JC Antenna is a ceramic patch RF antenna at 1.616 GHz and 2.492 GHz, covering 1.612–1.62 GHz and 2.488–2.496 GHz with 1.5 dBi gain, in a pin surface-mount design.

The H2P1361A2B0100 from Unictron Technologies Corporation is a stacked ceramic patch RF antenna for GPS at 1.227 GHz and 1.575 GHz, with 3.8 dBi and 5.3 dBi gain and pin adhesive mount.

The JLTD1245-1585S48-36P5-3A from JC Antenna is a two-layer ceramic patch RF antenna at 1.245 GHz and 1.585 GHz, covering 1.242–1.248 GHz and 1.58–1.59 GHz, in a pin surface-mount design.

The JTT1596S18P4X from JC Antenna is a ceramic patch RF antenna at 1.596 GHz, covering 1.593–1.599 GHz with -1 dBi gain, in a pin surface-mount design.

The JTT1575S18P4X from JC Antenna is a ceramic patch RF antenna at 1.575 GHz, covering 1.572–1.578 GHz with 2 dBi gain, in a pin surface-mount design.

The APARM1804-SG3 from Abracon LLC is a GNSS ceramic patch RF antenna for Beidou, Galileo, GLONASS and GPS, with frequencies at 1.561, 1.575, 1.586 and 1.602 GHz, coverage of 1.559–1.563, 1.574–1.576, 1.583–1.589 and 1.597–1.607 GHz, 2, 3 and 4 dBi gain, and solder surface mounting.

The APRE2508GCZ from Abracon LLC is a patch GNSS antenna for Beidou, Galileo, GLONASS, GNSS and GPS at 1.176, 1.561, 1.575, 1.577 and 1.602 GHz, covering 1.164–1.188, 1.563–1.563, 1.574–1.575, 1.563–1.591 and 1.597–1.607 GHz, with 1.3, 3.1, 1.6, 1.6 and 4.3 dBi gain, solder, adhesive, through-hole.

The TQ0159AA0000 from TST is a 1.573 GHz ceramic patch RF antenna, PIN-type.

The JLTT1268-1568-2492S45-37-25P4X from JC Antenna is a ceramic patch RF antenna at 1.268 GHz, 1.568 GHz and 2.492 GHz, covering 1.265–1.271 GHz, 1.565–1.571 GHz and 2.489–2.495 GHz with 0 dBi and 2 dBi gain, in a pin surface-mount design.

The APAGM2704A-C2G from Abracon LLC is a ceramic patch RF antenna for GLONASS, GNSS and GPS at 1.575 GHz and 1.601 GHz, covering 1.574–1.576 GHz and 1.6–1.602 GHz with 4.5 dBi gain, a U.FL (UMCC) and IPEX MHF1 surface mount connection.

The TQ0135AA0000 from TST is a 1.584 GHz ceramic patch RF antenna for SMD mounting.

The SZC-N-0G13 from Synzen is a ceramic patch RF antenna at 1.575 GHz and 1.602 GHz for Galileo, GLONASS, GNSS and GPS, covering 1.572–1.578 GHz and 1.597–1.607 GHz with 4 dBi and 2.2 dBi gain, in a 25x25x2 solder surface-mount package.

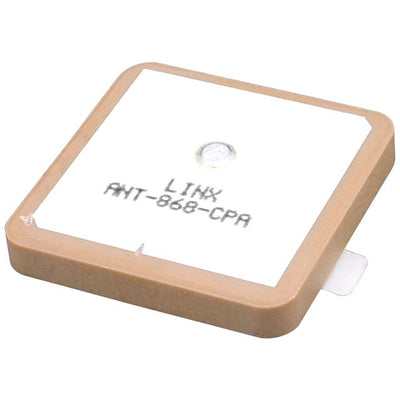

The ANT-868-CPA from Linx Technologies Inc. is an 868 MHz ISM and LPWA ceramic patch RF antenna covering 863 MHz to 876 MHz, with -5.9 dBi gain and pin adhesive mounting.

The YCGO008AA from Quectel is an active ceramic patch RF antenna for GNSS and GPS at 1.582 GHz, covering 1.559–1.606 GHz, with a 10×10 size, IPEX connector and adhesive mounting.

The YCGA001AA from Quectel is a GNSS and GPS ceramic patch RF antenna at 1.5825 GHz, covering 1.559–1.606 GHz, with pin mount, adhesive mounting and a 10×10 size.

The JTT1575S15P4X from JC Antenna is a ceramic patch RF antenna at 1.575 GHz, covering 1.572–1.578 GHz with -2.5 dBi gain, in a pin surface-mount design.

The ANT-915-CPA from Linx Technologies Inc. is a 915 MHz ISM and RFID ceramic patch RF antenna covering 909 MHz to 921 MHz, with 1.5 dBi gain and pin adhesive mounting.
